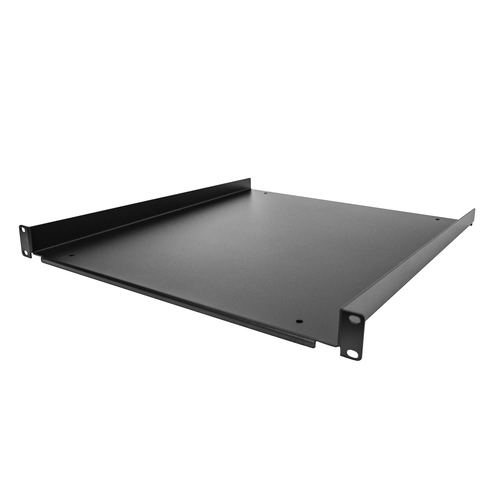

1U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" Network Equipment Rack &
- 1U 19" Server rack cabinet shelf 20" deep/ EIA/ECA-310 compliant for universal fit in any existing server/AV cabinet or enclosure/w/cage nuts and screws for mounting
- The durable design cantilever tray is easy to install with 2,0 mm SPCC commercial cold-rolled steel holding up to 55lb
- For flexibility shelf mounts in multiple orientations w/lips on one side to prevent equipment sliding off
- Compatible w/StarTech.com racks plus brands like HP APC Dell w/24 hr tech support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add a sturdy, fixed shelf into almost any server rack or cabinet
The SHELF-1U-20-FIXED-S lets you add a 1U 20 inches (50.8 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet.
Quality construction
The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.
Two installation options

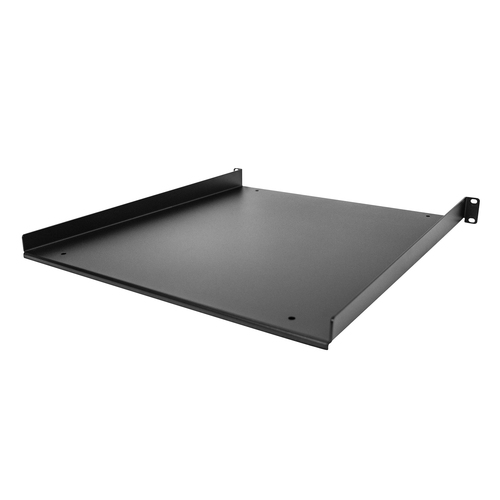

You can install the 1U rack shelf using one of two different orientations for mounting. The standard, with the lip facing downwards or inversed with the lip facing upwards that prevents your equipment from sliding off.
Hardware included

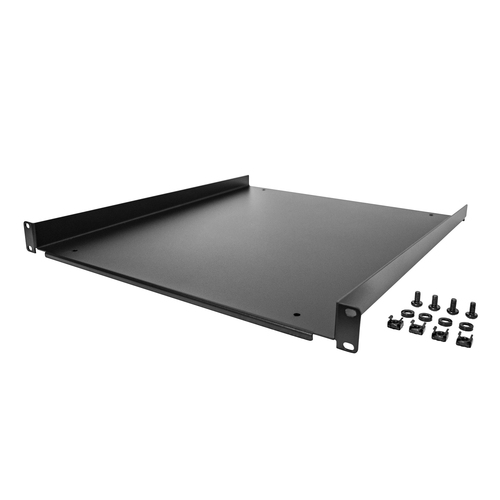

Conveniently includes M6 square cage nuts and M6 screws to setup your equipment in no time.
The SHELF-1U-20-FIXED-S is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
Features
- Type
- Rack shelf
- Product colour
- Black
- Housing material
- SPCC
- Maximum weight capacity
- 25 kg
- Rack capacity
- 1U
Weight & dimensions
- Width
- 483 mm
- Depth
- 508 mm
- Height
- 43 mm
- Weight
- 4 kg
Packaging data
- Package width
- 110 mm
- Package depth
- 557 mm
- Package height
- 129 mm
- Package weight
- 5.2 kg
Packaging content
- Quick installation guide
- Yes
- Screws included
- Yes
- Screw type
- M6
- Cage nuts included
- Yes
Logistics data
- Master (outer) case width
- 505 mm
- Master (outer) case length
- 588 mm
- Master (outer) case height
- 565 mm
- Products per master (outer) case
- 4 pc(s)
- Harmonized System (HS) code
- 85389099
