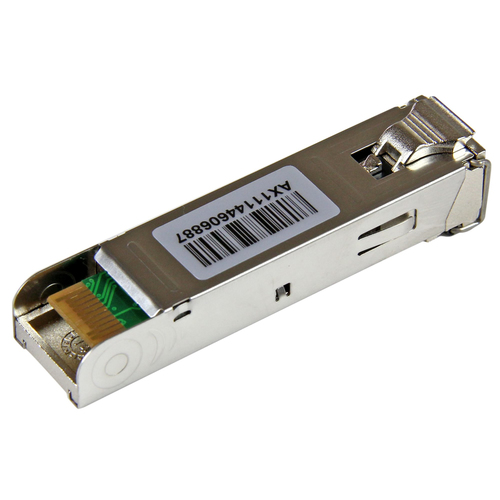

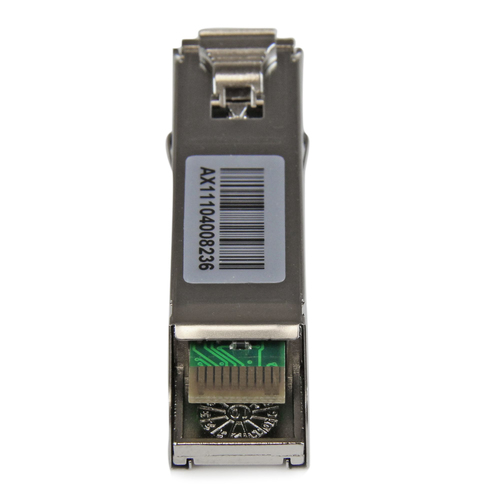

MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit
- MSA Uncoded SFP Module
- 1000BASE-SX 1Gbps Gigabit Ethernet
- 850nm Multi Mode (MMF)
- Up to 550m (1804')
- LC Connector DDM
- Designed, programmed and tested to work with compatible MSA compliant switches and routers
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime Warranty
The SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber

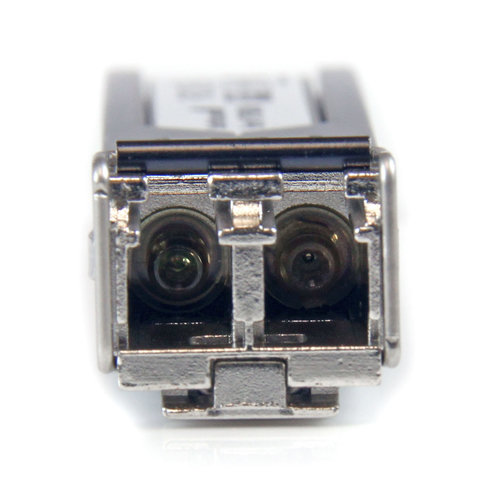

• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 78,286 hours
• Power Consumption: Less than 1 Watt
• DDM: No
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SX
- Maximum transfer distance
- 550 m
- Wavelength
- 850 nm
- Networking standards
- IEEE 802.3z
- Fiber ethernet cabling technology
- 1000BASE
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- No
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 78286 h
- Brand compatibility
- MSA Compliant
Power
- Power consumption (typical)
- 1 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, TAA, REACH
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13 mm
- Depth
- 55 mm
- Height
- 9 mm
- Weight
- 18 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 65 mm
- Package depth
- 113 mm
- Package height
- 27 mm
- Package weight
- 40 g
Other features
- Dimensions (WxDxH)
- 13 x 55 x 9 mm
Logistics data
- Master (outer) case width
- 284 mm
- Master (outer) case length
- 444 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 376 mm
- Products per master (outer) case
- 100 pc(s)
