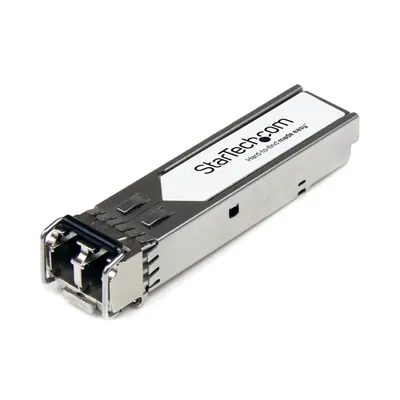

HPE J9150D Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber Optic Transceiver - 10GE
- HPE J9150D Compatible SFP+ 10GBASE-SR (10Gbps) Gigabit Ethernet
- 850nm Multi Mode (MMF)
- Up to 300m (984')
- LC Connector DDM
- For HPE switches like: FlexFabric 6120XG 6120G
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The J9150D-ST is a HPE J9150D compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SR
- Maximum transfer distance
- 300 m
- Wavelength
- 850 nm
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 498745585 h
- Brand compatibility
- HP
- Compatible products
- J9150D
Power
- Power consumption (typical)
- 1.3 W
Weight & dimensions
- Width
- 58.4 mm
- Depth
- 13.9 mm
- Height
- 13.7 mm
- Weight
- 20 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 91 mm
- Package depth
- 114 mm
- Package height
- 33 mm
- Package weight
- 50 g
Logistics data
- Master (outer) case width
- 348 mm
- Master (outer) case length
- 421 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 353 mm
- Products per master (outer) case
- 108 pc(s)
