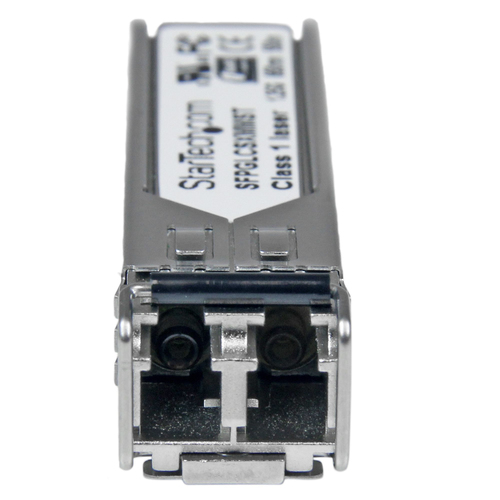

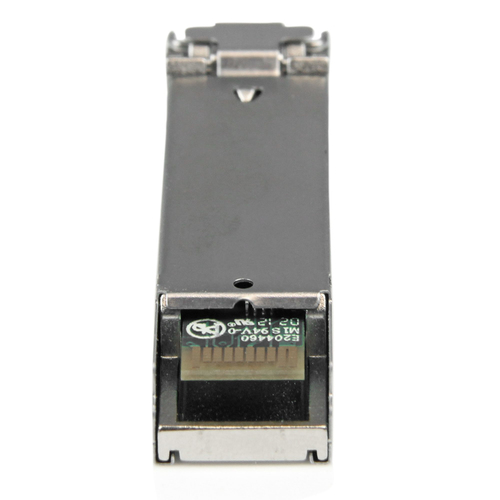

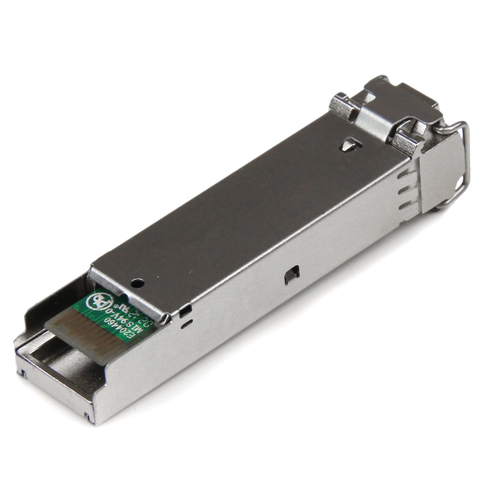

Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver
- Cisco GLC-SX-MM Compatible SFP 1000BASE-SX (1 Gbps) Gigabit Ethernet
- 850nm | Multi Mode (MMF)
- Up to 550m (1804')
- LC Connector
- For Cisco switches like: IE3400 IE3300 IE3200 ME1200 ME2400 N9300 N9500 N9200
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SX
- Maximum transfer distance
- 550 m
- Wavelength
- 850 nm
- Networking standards
- IEEE 802.3z
- Duplex system
- Full, Half
- Digital Diagnostics Monitoring (DDM)
- No
- Wavelength-division multiplexing (WDM)
- No
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 3381761 h
- Brand compatibility
- Cisco
- Compatible products
- GLC-SX-MM
Power
- Power consumption (typical)
- 1 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, REACH
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 30 - 70%
Weight & dimensions
- Width
- 12 mm
- Depth
- 60 mm
- Height
- 10 mm
- Weight
- 16 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 90 mm
- Package depth
- 112 mm
- Package height
- 33 mm
- Package weight
- 95 g
Logistics data
- Master (outer) case width
- 344 mm
- Master (outer) case length
- 426 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 354 mm
- Products per master (outer) case
- 108 pc(s)
