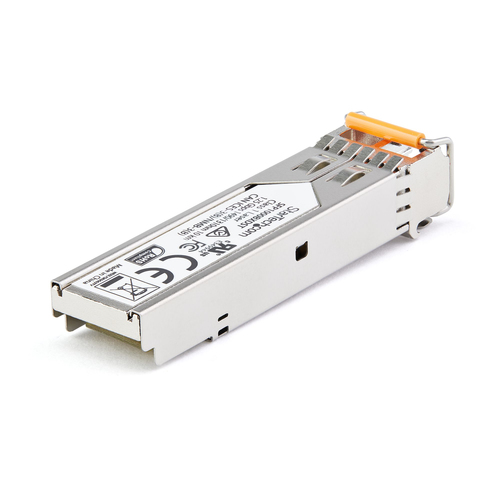

Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)
- Dell EMC SFP-1G-BX10-U Compatible SFP 1000BASE-BX-U (1Gbps)
- 1310nmTx/1490nmRx Single Mode (SMF) 1GE BiDi Transceiver
- Up to 10km (6.2mi)
- 1 Gigabit Ethernet
- Single Strand WDM SFP+ SMF Connector | DDM
- Hot-Swappable | MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000BASE-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nmTx/1490nmRx
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber

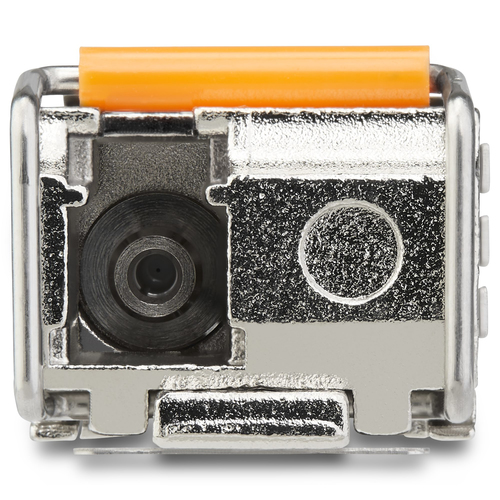

• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF : 3,713,222 hours
• Power Consumption:
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1000 Mbit/s
- Interface type
- SFP
- Single-mode fiber (SMF) supported
- Yes
- Multi-mode fiber (MMF) supported
- No
- Fiber optic connector
- LC
- Maximum transfer distance
- 10000 m
- Tx wavelength (max)
- 1310 nm
- Rx wavelength (max)
- 1490 nm
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 3713222 h
- Brand compatibility
- Dell
- Compatible products
- SFP-1G-BX10-U
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, REACH
Weight & dimensions
- Width
- 58.4 mm
- Depth
- 13.9 mm
- Height
- 12.6 mm
- Weight
- 30 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 94 mm
- Package depth
- 112 mm
- Package height
- 30 mm
- Package weight
- 50 g
Logistics data
- Master (outer) case width
- 344 mm
- Master (outer) case length
- 416 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 360 mm
- Products per master (outer) case
- 100 pc(s)
