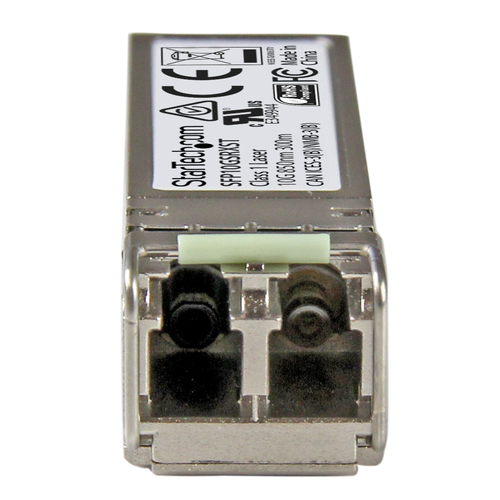

Cisco SFP-10G-SR-X Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic
- Cisco SFP-10G-SR-X Compatible SFP+ 10GBASE-SR (10 Gbps) Gigabit Ethernet
- 850nm | Multi Mode (MMF)
- Up to 300m (984')
- LC Connector DDM
- For Cisco switches like: Firepower ASR9000 C9300 C3850 C9500 IE5000 C3650 C4500
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The SFP10GSRXST is a Cisco SFP-10G-SR-X compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 10Gbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft.)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SR
- Maximum transfer distance
- 300 m
- Wavelength
- 850 nm
- Networking standards
- IEEE 802.3ae
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
- Wavelength-division multiplexing (WDM)
- No
Features
- Product colour
- Silver
- Housing material
- Aluminium
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 1967709 h
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UR
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.9 mm
- Depth
- 58.4 mm
- Height
- 12.6 mm
- Weight
- 22 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 92 mm
- Package depth
- 113 mm
- Package height
- 33 mm
- Package weight
- 50 g
Logistics data
- Master (outer) case width
- 346 mm
- Master (outer) case length
- 412 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 362 mm
- Products per master (outer) case
- 100 pc(s)
- Country of origin
- China
