MSA Compliant SFP+ Transceiver Module - 10GBASE-ZR~MSA Uncoded SFP+ Module - 10GBASE-ZR - 10GbE
- MSA Uncoded SFP+ Module
- 10GBASE-ZR 10Gbps Gigabit Ethernet
- 1550nm Single Mode (SMF)
- Up to 80km (49.7mi)
- LC Connector DDM
- Designed, programmed and tested to work with compatible MSA compliant switches and routers
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

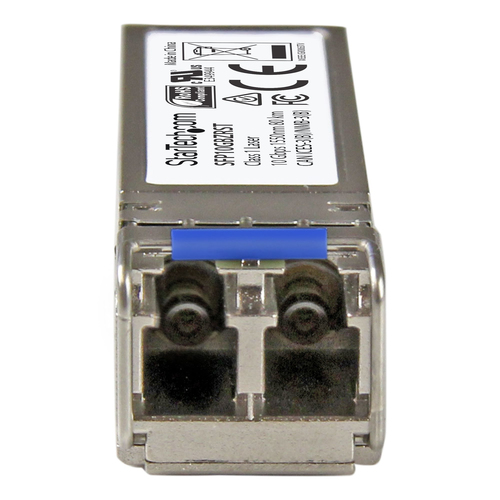

The SFP10GBZRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-ZR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Less than 1.6 Watts
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Single-mode fiber (SMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- ZR
- Maximum transfer distance
- 80000 m
- Wavelength
- 1550 nm
- Networking standards
- IEEE 802.3ae
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
- Wavelength-division multiplexing (WDM)
- No
Features
- Product colour
- Silver
- Housing material
- Aluminium
- Hot-Plug support
- Yes
Power
- Power consumption (typical)
- 1.6 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UR
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.9 mm
- Depth
- 58.4 mm
- Height
- 12.6 mm
- Weight
- 24 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 90 mm
- Package depth
- 115 mm
- Package height
- 30 mm
- Package weight
- 54 g
Logistics data
- Master (outer) case width
- 315 mm
- Master (outer) case length
- 400 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 318 mm
- Products per master (outer) case
- 80 pc(s)
