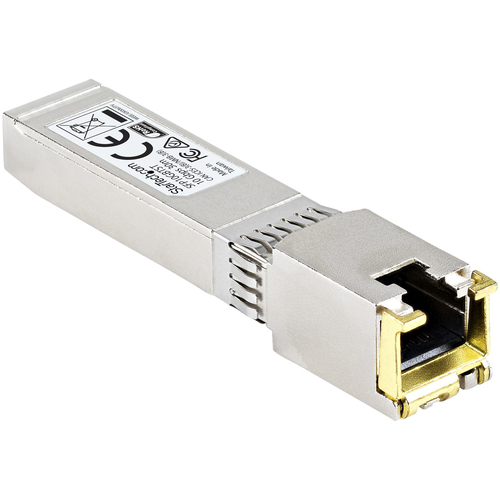

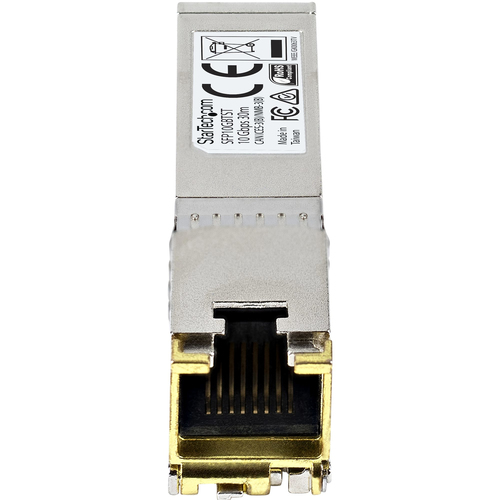

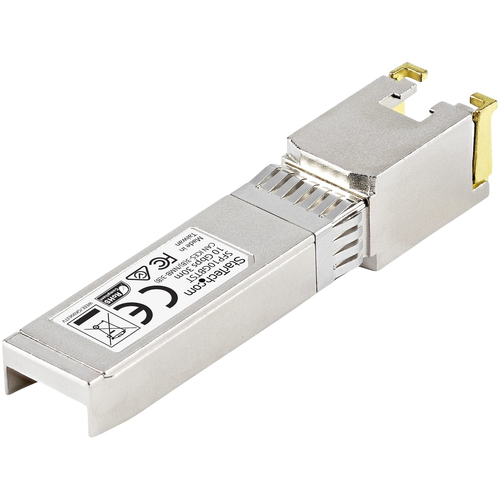

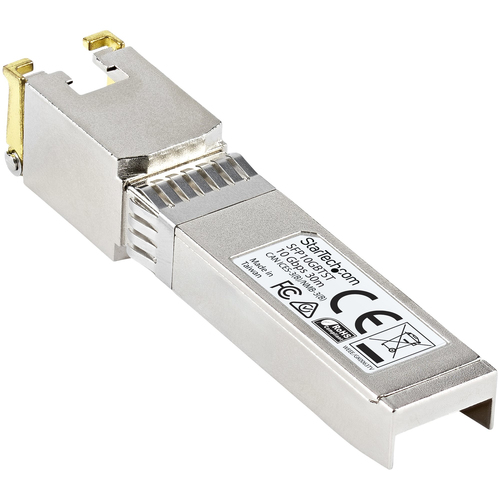

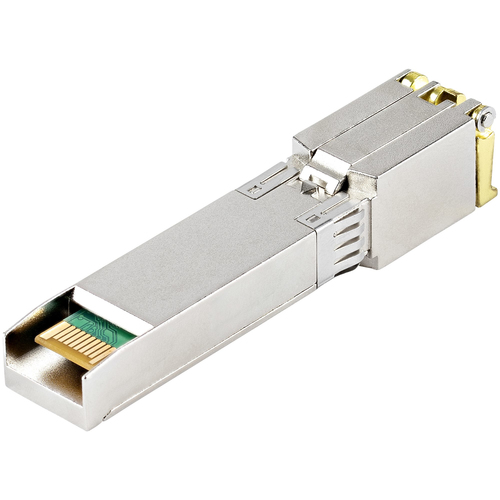

MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m
- MSA Uncoded SFP+ Module
- 10GBASE-T 10Gbps Gigabit Ethernet
- Copper
- Up to 30m (98.4')
- RJ-45 Connector
- Designed, programmed and tested to work with compatible MSA compliant switches and routers
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty
The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft.)
• MTBF: 4,598,430 hours DDM: No >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Copper
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Maximum transfer distance
- 30 m
- Networking standards
- IEEE 802.3an
- Cabling technology
- 10GBASE-T
- Ethernet LAN (RJ-45) ports
- 1
- Duplex system
- Full
- Auto MDI/MDI-X
- Yes
- Digital Diagnostics Monitoring (DDM)
- No
Features
- Product colour
- Silver
- Housing material
- Zinc steel
- Hot-Plug support
- Yes
- Brand compatibility
- MSA Compliant
Power
- Power consumption (typical)
- 2.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.9 mm
- Depth
- 70 mm
- Height
- 12.6 mm
- Weight
- 28 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 119 mm
- Package depth
- 76 mm
- Package height
- 34 mm
- Package weight
- 60 g
Logistics data
- Master (outer) case width
- 342 mm
- Master (outer) case length
- 638 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 290 mm
- Products per master (outer) case
- 150 pc(s)
- Country of origin
- China
