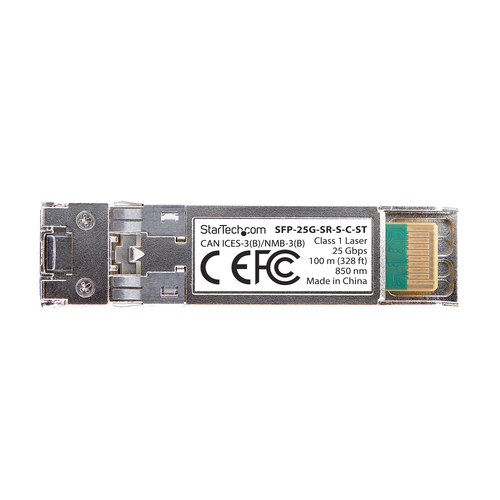

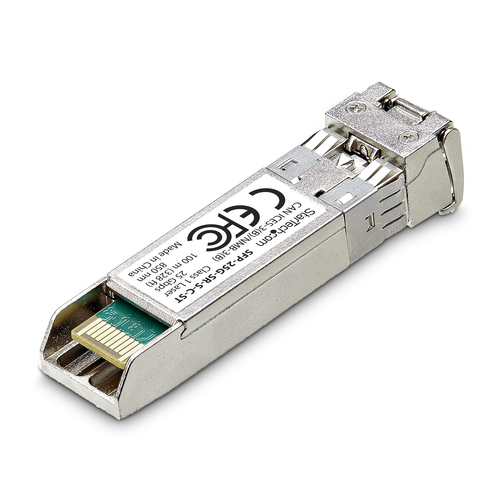

Cisco SFP-25G-SR-S Compatible SFP28 Module, 25Gbps Multimode Fiber (MMF), 100m (328ft), LC
- Cisco-compatible SFP28 transceiver equivalent to SFP-25G-SR-S MMF module
- Tested for seamless integration with Cisco switches/routers for reliable 25Gbps connectivity up to 100m (328ft)
- Maximize bandwidth for data migrations/high-capacity network storage/Multimedia upload
- Technical Specs: 25GBASE-SR SFP28/25GbE/Multimode Fiber (MMF)/LC Duplex connector/850nm/DDM/DOM
- Works w/ MSA-compliant switches that accept uncoded fiber modules
- This 25 Gigabit optical transceiver is backed for life
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Enhance the networking infrastructure with this Cisco®-compatible 25GBASE-SR optical transceiver, ensuring reliable performance and seamless connectivity at distances of up to 100m
This fiber optic transceiver is the direct equivalent to Cisco® SFP-25G-SR-S for 25Gbps connectivity up to 100m (328ft) over LC-terminated Multimode Fiber (MMF) cable. The optical module has been programmed and tested for seamless integration with Cisco® switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
• 25GBASE-SR SFP28
• Data Rate: 25Gbps
• Fiber Type: Multimode Fiber (MMF)
• Connector: LC
• Wavelength: 850nm Tx/Rx
• Distances: Up to 100m (328ft)
• Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment manufactured by Cisco and network equipment from manufacturers that accept uncoded optical modules.
Optimized Network
The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 25780 Mbit/s
- Interface type
- SFP28
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SR
- Maximum transfer distance
- 100 m
- Wavelength
- 850 nm
- Networking standards
- IEEE 802.3cc
- Fiber ethernet cabling technology
- 25GBASE
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Mean time between failures (MTBF)
- 4020594 h
- Brand compatibility
- MSA Compliant
Power
- Power consumption (typical)
- 1.2 W
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), CE, RoHS
Sustainability
- Sustainability compliance
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 0 - 85%
Weight & dimensions
- Width
- 90 mm
- Depth
- 115 mm
- Height
- 31 mm
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 91 mm
- Package depth
- 113 mm
- Package height
- 33 mm
- Package weight
- 200 g
Logistics data
- Master (outer) case width
- 340 mm
- Master (outer) case length
- 420 mm
- Master (outer) case height
- 350 mm
- Products per master (outer) case
- 100 pc(s)
