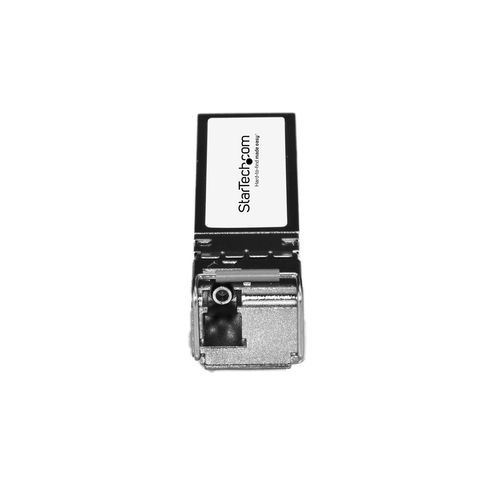

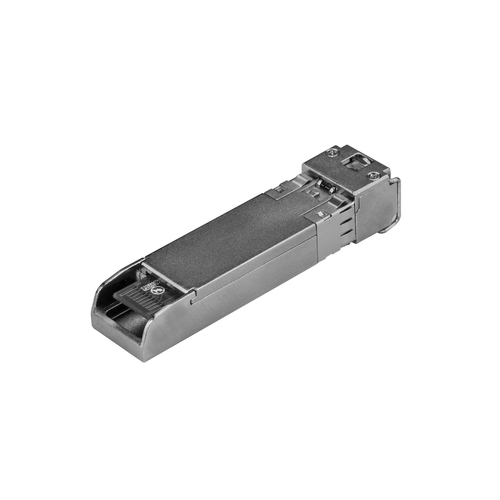

Cisco SFP-10G-BXD-I Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF)
- Cisco SFP-10G-BXD-I Compatible SFP+ 10GBASE-BX (10Gbps)
- 1330nmTx/1270nmRx Single Mode (SMF) 10GE BiDi Transceiver
- Up to 10km (6.2mi)
- 10 Gigabit Ethernet
- Single Strand WDM SFP+ SMF Connector | DDM
- For Cisco switches like ASR9000, ASR1000, NCS5500 C3850 NCS540
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP-10G-BXD-I-ST is a Cisco SFP-10G-BXD-I compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP-10G-BXU-I-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1330nmTx/1270nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Single-mode fiber (SMF) supported
- Yes
- Multi-mode fiber (MMF) supported
- No
- Fiber optic connector
- LC
- SFP transceiver standard
- BX
- Maximum transfer distance
- 10000 m
- Tx wavelength (max)
- 1330 nm
- Rx wavelength (max)
- 1270 nm
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Brand compatibility
- Cisco
- Compatible products
- SFP-10G-BXD-I
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, REACH
Weight & dimensions
- Width
- 58.4 mm
- Depth
- 14 mm
- Height
- 12.6 mm
- Weight
- 24 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 92 mm
- Package depth
- 112 mm
- Package height
- 33 mm
- Package weight
- 50 g
Logistics data
- Master (outer) case width
- 92 mm
- Master (outer) case length
- 115 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 33 mm
- Products per master (outer) case
- 1 pc(s)
