Home/Catalogue/StarTech.com/SATDUP11

StarTech.com SATDUP11 Drag to turn · 8 views
StarTech.comMedia Duplicators

1:1 Standalone Hard Drive Duplicator & Eraser, SATA HDD / SSD Disk Cloner / Copier / Wiper /

Part # SATDUP11UPC 065030852586Warranty: 2 Years3.9 lb

  • 1:1 Standalone SATA hard drive duplicator works as a disk cloner / copier and eraser / sanitizer / recovery tool (No PC required)
  • Supports 2.5/3.5" SATA HDDs/SSD harddrives of any capacity
  • 3 Duplication Modes: 14 GB/min Sector-by-Sector (Whole Disk) | System and File | All Partitions Copy
  • 4 Erase / Wipe Modes: Quick and Secure Erase | Single and 3-Pass Overwrite (DoD/NIST SP 800-88 Rev 1)
  • LCD Display | LED Indicators | Hardware includes HDD pads and SATA cables | TAA Compliant Device
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Clone or Erase 2.5in/3.5in SATA hard drives, without a host computer connection

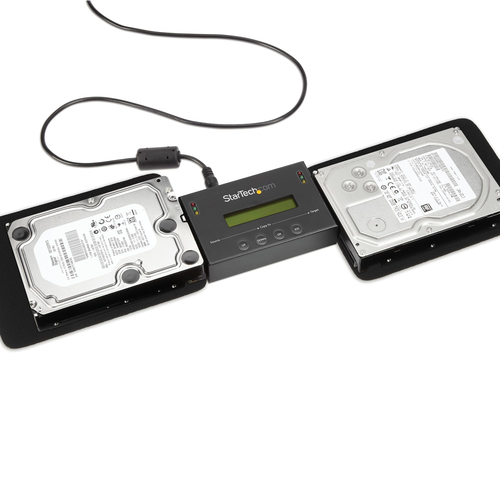

The SATDUP11 standalone hard drive duplicator eraser enables you to copy 1-to-1, or erase up to 2 SATA hard drives simultaneously without a host computer.

Featuring three modes of standalone drive duplication including Data Only, All Partitions, and Sector by Sector, the HDD copier offers high performance duplication, and has been tested for speeds up to 14GB per minute.

As a hard drive eraser the SATDUP11 is capable of erasing two drives simultaneously with several different modes available including Quick Erase, Secure Erase, Cryptographic Erase and Single-Pass / Three-Pass Hard Drive Overwrite (DoD) -- which passes over the hard drive 3 times to ensure that the data has been completely wiped.

Complete with integrated LCD display, and support for 2.5" and 3.5" SATA I/II/III hard drives (HDD) and Solid State Drives (SSD), the SATDUP11 is a user-friendly all-in-one solution for any application requiring hard drive duplication or erasing.

For added compatibility with different drive types in duplication and quick erase applications, the SATDUP11 supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

2.5/3.5in IDE drives - SAT2IDEADP

01

mSATA drives - SAT2MSAT25

M.2 (NGFF) drives - SAT32M225

Specifications

Features

Product type
HDD duplicator
Product colour
Black
Housing material
Aluminium
Number of simultaneous copies
1 copies
Interface
SATA
Duplicator operating modes
Compare, Copy, Erase
Transfer rate
14 GB/min
Display
LCD
Certification
CE, FCC, REACH

Hard drive

HDD capacity
4 TB
Supported HDD sizes
2.5,3.5"
Supported HDD interfaces
Serial ATA

Power

Power consumption (typical)
60 W
AC input voltage
100 - 240 V
Input current
1.4 A
Output voltage
12 V
Output current
5 A
Included power plug types
EU, NA, UK

Weight & dimensions

Dimensions (WxDxH)
130 x 80 x 30 mm
Weight
358 g

Packaging data

Package width
185 mm
Package depth
267 mm
Package height
121 mm
Package weight
1.6 kg
Package length
26.5 cm

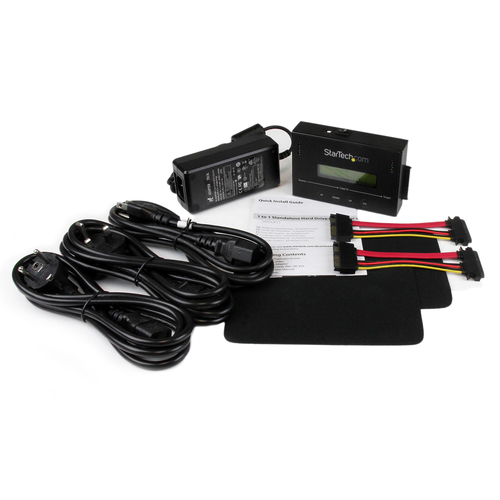

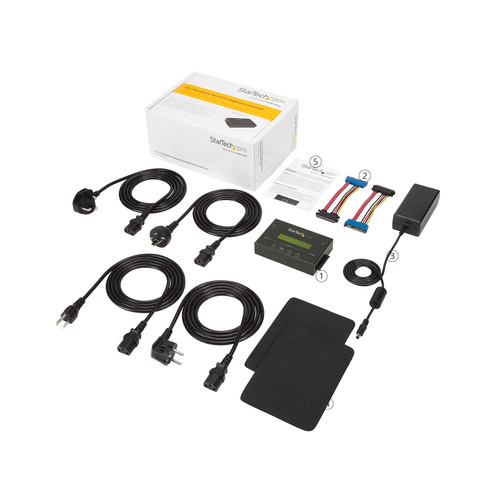

Packaging content

Cables included
SATA
AC adapter included
Yes
Manual
Yes
Number of pads included
2

Operational conditions

Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-20 - 85 °C

Technical details

Compliance certificates
RoHS

Logistics data

Master (outer) case length
544 mm
Master (outer) case width
526 mm
Master (outer) case height
401 mm
Products per master (outer) case
16 pc(s)
