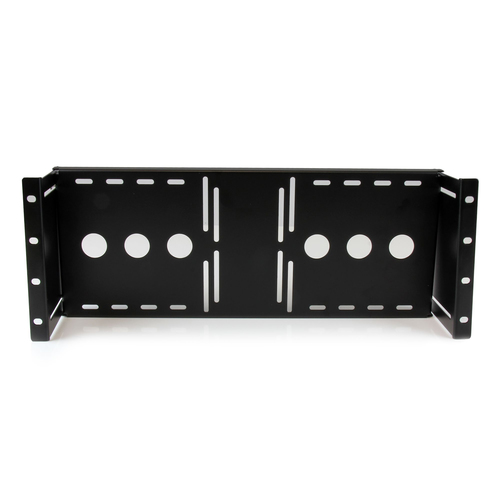

4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant
- Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
- Compatible with StarTech.com 4POSTRACKBK
- Rack Mount Monitor Bracket/Rackmount LCD Bracket/Monitor Rack Mount Kit
- Fits 75x75 and 100x100 VESA hole patterns
- Adjustable depth design allows a rack door to be closed

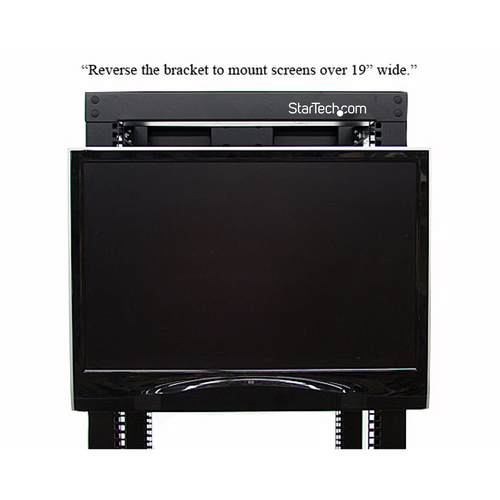

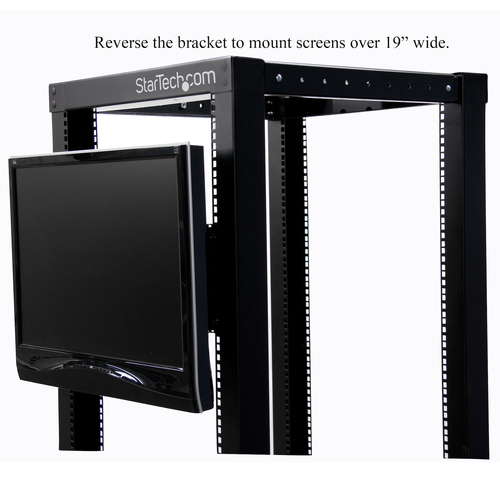

- Reversible bracket can rack mount a larger LCD panel outside of the rack
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

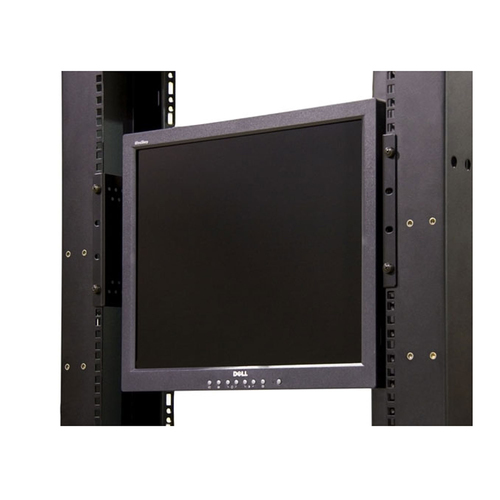

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

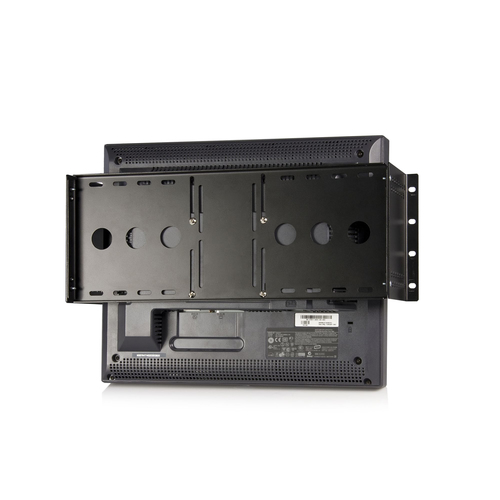

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
Specifications
Features
- Type
- Mounting bracket
- Product colour
- Black
- Housing material
- Steel
- Rack capacity
- 4U
- Compliance industry standards
- EIA RS310-D
- Certification
- CE, REACH, TAA
Weight & dimensions
- Width
- 842 mm
- Depth
- 107.5 mm
- Height
- 177 mm
- Mounting depth (min)
- 0 mm
- Mounting depth (max)
- 8.89 cm
- Weight
- 1.7 kg
Packaging data
- Package width
- 469 mm
- Package depth
- 201 mm
- Package height
- 53 mm
- Package weight
- 2 kg

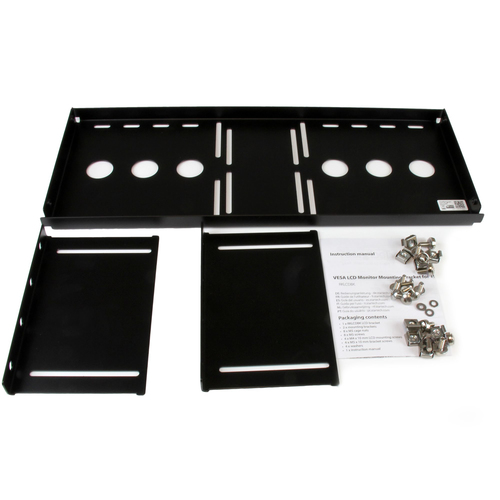

Packaging content
- Mounting kit
- Yes
- Quick installation guide
- Yes
- Screws included
- Yes
- Screw type
- M5, M4
- Number of screws
- 16
- Nuts included
- Yes
- Number of nuts
- 8
- Washers included
- Yes
- Number of washers included
- 4
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 524 mm
- Master (outer) case length
- 187 mm
- Master (outer) case height
- 590 mm
- Products per master (outer) case
- 156 pc(s)
- Harmonized System (HS) code
- 85389099
