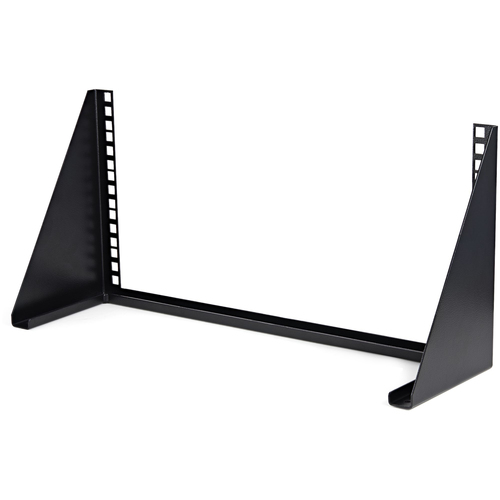

5U Vertical Wall Mount Rack - 19in Low Profile Open Wall Mounting Bracket - Network/Server
- Low profile 5U vertical patch panel bracket to mount server/data/networking or AV equipment
- Can be mounted vertically where standard racks are not practical
- TAA compliant and constructed to EIA-310 19 inch rack standards and a solid steel open frame design with a weight capacity of 200lb

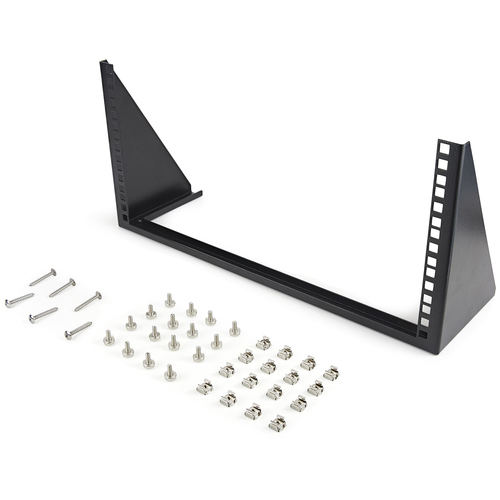

- Ships fully assembled with cage screws for mounting equipment and 1 ½" wood screws for mounting the rack
- The wall mounting holes on the 5U vertical mountable rack bracket are 16" center to center
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Mount server, network or telecommunications devices vertically with this 5U wall-mountable rack
The RK519WALLV 5U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 5U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
Need additional storage? StarTech.com also offers:
1U 19in Wallmount Bracket
2U 19in Wallmount Bracket
3U 19in Wallmount Bracket
4U 19in Wallmount Bracket
Specifications
Features
- Rack capacity
- 5U
- Type
- Wall mounted rack
- Maximum weight capacity
- 90 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 2-post
- Mounting hole shape
- Square
Weight & dimensions
- Width
- 235 mm
- Depth
- 500 mm
- Height
- 140 mm
- Weight
- 1.4 kg
Packaging data
- Nuts included
- Yes
- Number of nuts
- 16
- Screws included
- Yes
- Number of screws
- 22
- Package width
- 562 mm
- Package depth
- 259 mm
- Package height
- 181 mm
- Package weight
- 2.2 kg
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 560 mm
- Master (outer) case length
- 175 mm
- Master (outer) case height
- 260 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
