2-Post 15U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server Rack with Adjustable Depth
- 2-Post 15U open frame network rack with 12-20in (30.5-50.8cm) adjustable depth for AV, IT computer, switches, patch panels, and PDUs
- Durable 19" data server rack features vertical rails made of SPCC cold-rolled steel
- Unobstructed airflow to help keep your equipment cool
- Efficient flat pack shipping and hassle-free installation
- Easy install with access to all sides

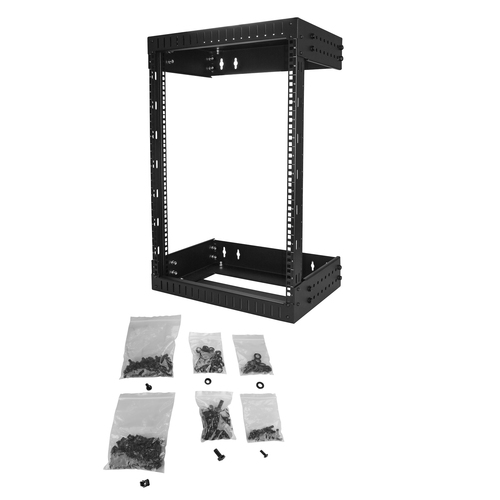

- M6 square cage nuts, M6 screws and plastic washers included
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

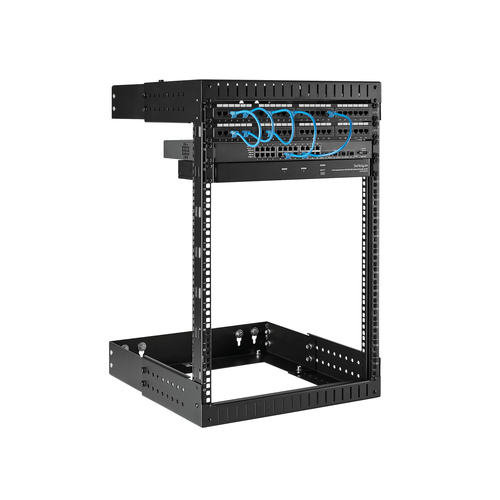

Mount your network and telecommunications equipment with the convenience of adjustable depth
This open frame wallmount server rack provides 15U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb (90 kg).
Accommodate Larger Devices
The open frame rack adjusts from 12 to 20 inches (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.
Free up Floor Space
When space is limited you can wall-mount the open-frame rack in a server room, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep Equipment Cool and Accessible
The rack's open frame design promotes passive cooling; ensures easy access to your rack-mounted equipment and makes it simple to configure mounted devices, which saves you time.
Easy, Hassle-Free Installation

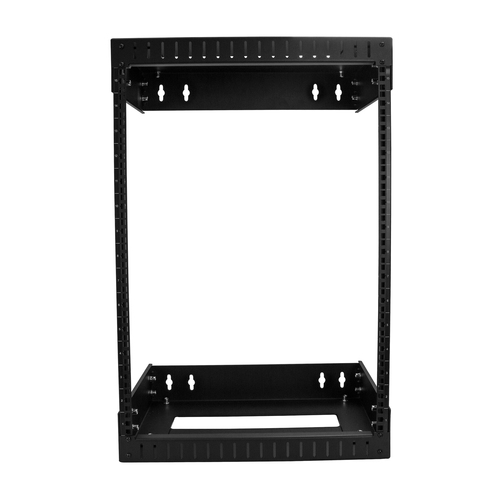

With an adjustable depth as low as 12 inches (30.4 cm), this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards.
Specifications
Features
- Rack capacity
- 15U
- Type
- Wall mounted rack
- Maximum weight capacity
- 90 kg
- Product colour
- Black
- Material
- Steel
- Frame type
- Open
- Product design
- 2-post
- Adjustable mounting rails
- No
- Number of fans
- 0 fan(s)
- Cable management
- No
- Mounting hole shape
- Square
- Certification
- CE, REACH
Weight & dimensions
- Width
- 504 mm
- Depth
- 510 mm
- Height
- 773 mm
- Weight
- 15.2 kg
- Mounting depth (max)
- 50.6 cm
Packaging data
- Nuts included
- Yes
- Number of nuts
- 60
- Screws included
- Yes
- Number of screws
- 76
- Number of bolts
- 24
- Number of washers included
- 84
- Manual
- Yes
- Package width
- 817 mm
- Package depth
- 537 mm
- Package height
- 147 mm
- Package weight
- 17.8 kg
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85381000
- Master (outer) case width
- 530 mm
- Master (outer) case length
- 800 mm
- Master (outer) case height
- 130 mm
- Products per master (outer) case
- 1 pc(s)
Other features
- Compliance industry standards
- EIA/ECA-310-E
