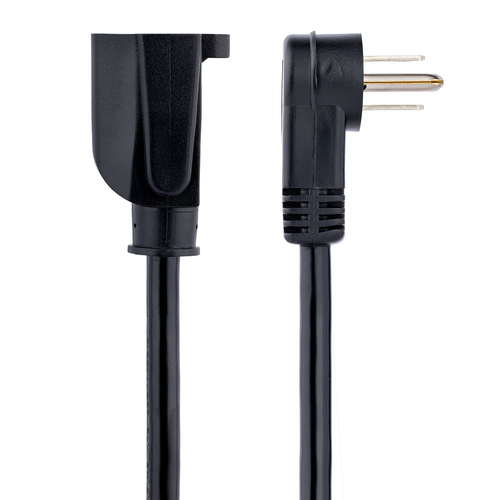

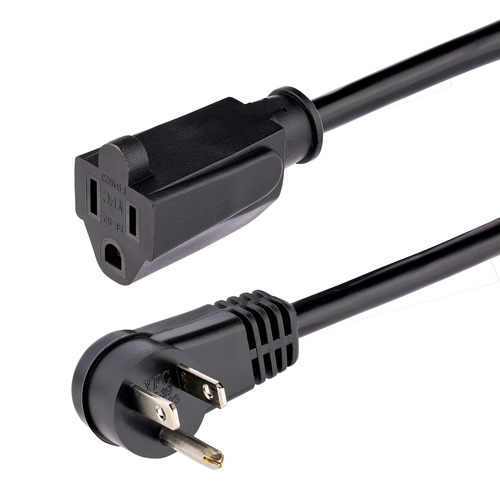

6ft (2m) Power Extension Cord, Right Angle NEMA 5-15P to NEMA 5-15R, 13A 125V, 16AWG, Computer
- 6ft (1.8m) AC power extension cord | 16AWG PC extension cable with right angle NEMA 5-15P and NEMA 5-15R connectors for workstations/home offices
- UL listed components | Fully molded strain relief for durability | Fire Rating: VW-1 | 3 Conductor extension cord
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
6ft (2m) Power Extension Cord, Right-Angle NEMA5-15P to NEMA5-15R
Configure the NEMA 5-15 power connections in a server room, reduce cable strain for safe and efficient power connections behind office furniture, and extend the length of bulky power cords.
Low-Profile NEMA 5-15 Power Connections

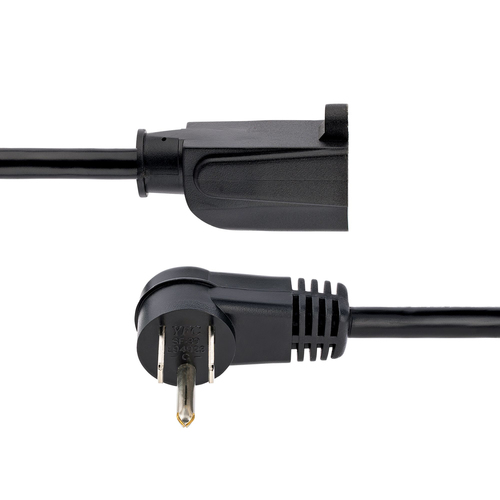

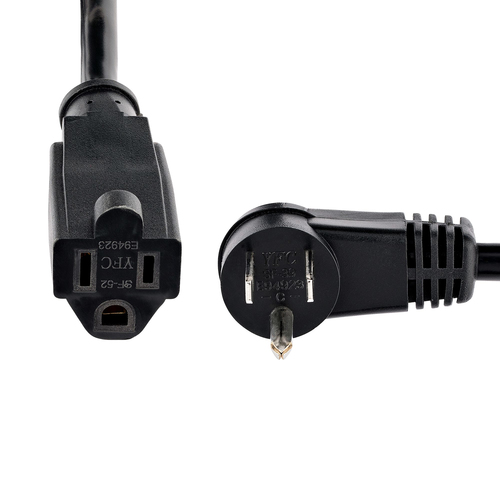

The extension cord features a low-profile right-angled NEMA 5-15 plug. This reduces cable strain and increases the amount of airflow when connecting to a NEMA 5-15 receptacle that is situated behind a cabinet or a desk within a high-density server rack in a data center. Extend any NEMA 5-15 power cord (e.g., for a computer, display, server PDU/UPS, etc.).

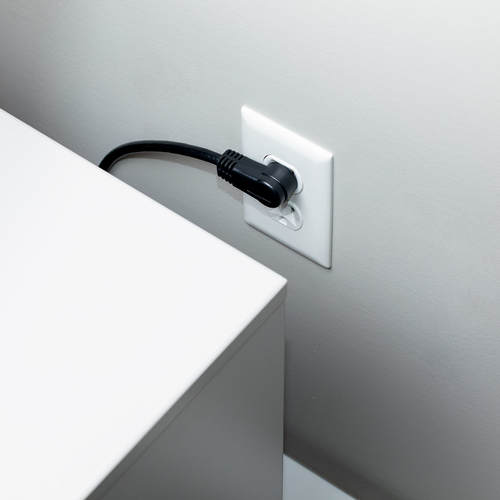

Gain Access to Blocked Receptacles
The right-angle power cord enables access to previously blocked receptacles, located on power strips, surge protectors, or wall outlets. Since the cable is situated to the side of the outlet, bulky plugs will no longer impede access to nearby receptacles.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 1.8 m
- Connector 1
- NEMA 5-15P
- Connector 2
- NEMA 5-15R
- Connector 1 form factor
- Angled
- Connector 2 form factor
- Straight
- Connector angle
- 90°
- Jacket material
- Polyvinyl chloride (PVC)
- Conductor material
- Copper
- AWG wire size
- 16
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 125 V
- Maximum current
- 13 A
Operational conditions
- Operating temperature (T-T)
- -10 - 35 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 5 - 95%
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Diameter
- 8.5 mm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 77 mm
- Package depth
- 233 mm
- Package height
- 49 mm
- Package weight
- 241 g
Logistics data
- Master (outer) case width
- 517 mm
- Master (outer) case length
- 332 mm
- Master (outer) case height
- 236 mm
- Products per master (outer) case
- 50 pc(s)
