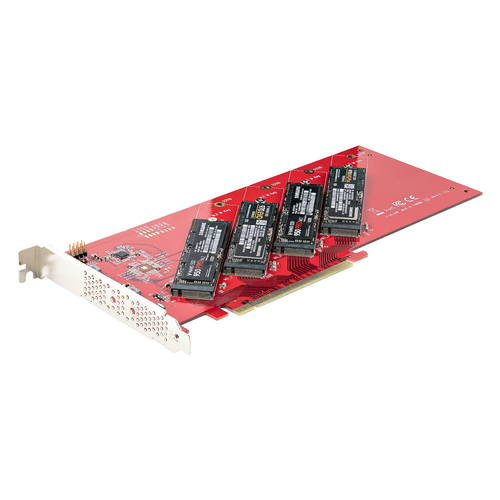

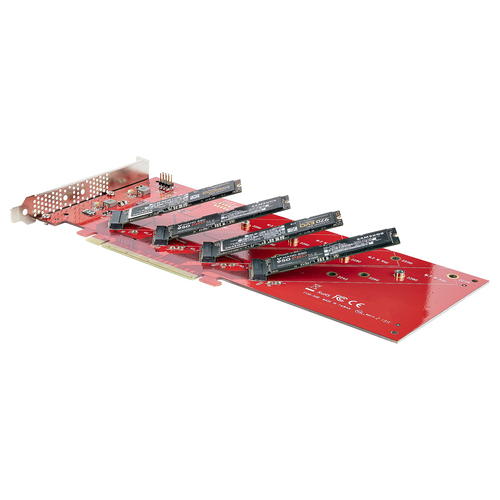

Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive
- This Quad M.2 PCIe Adapter Card enables the installation of 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer through an available x16 PCI Express 4.0 slot | Read and write speeds up to 7.8GBps per drive
- PCIe Bifurcation support is required by the Computer/Motherboard | Compatible with PCIe 3.0 x16 slots | Windows/Linux
- Access the M.2 PCIe SSDs individually | Software RAID support for RAID 0/RAID 1/RAID 5/RAID10 or JBOD
- Vented full-profile bracket pre-installed
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

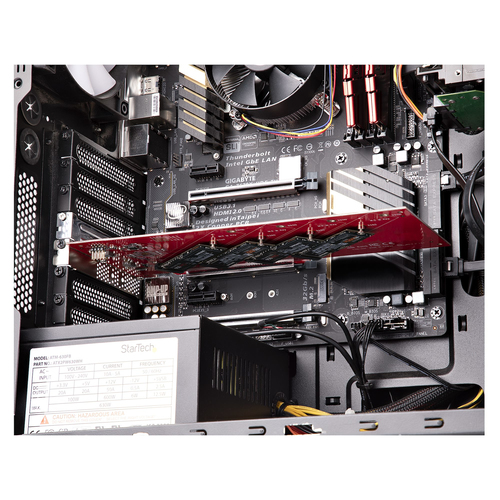

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.
Boost System Performance
Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.
Access Four M.2 PCIe SSDs Simultaneously
No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.
Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.
Wide Compatibility
The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.
Vented Brackets
The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.
The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance
Specifications
Ports & interfaces
- Host interface
- PCIe
- Output interface
- M.2
- Expansion card standard
- PCIe 4.0
- Number of M.2 (M) slots
- 4
Design
- Internal
- Yes
- Product colour
- Red
- LED indicators
- Yes
- Mean time between failures (MTBF)
- 4353192 h
Features
- Data transfer rate (max)
- 7.8 Gbit/s
- Plug and Play
- Yes
Operational conditions
- Operating temperature (T-T)
- -40 - 80 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 15 - 90%
Weight & dimensions
- Width
- 290 mm
- Depth
- 170 mm
- Height
- 30 mm
- Weight
- 150 g
Packaging data
- Screws included
- Yes
- Quick installation guide
- Yes
- Package width
- 174 mm
- Package depth
- 292 mm
- Package height
- 33 mm
- Package weight
- 150 g
Logistics data
- Products per master (outer) case
- 30 pc(s)
- Master (outer) case width
- 501 mm
- Master (outer) case length
- 382 mm
- Master (outer) case height
- 328 mm
