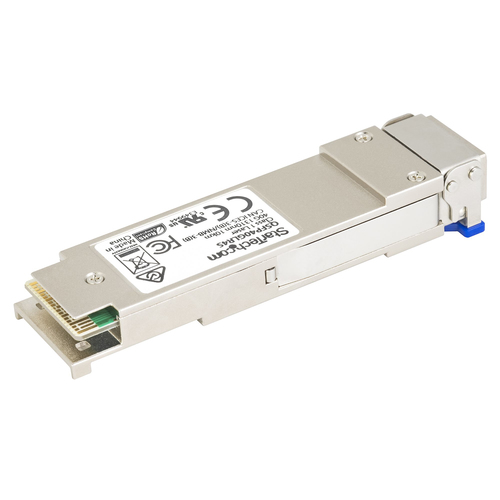

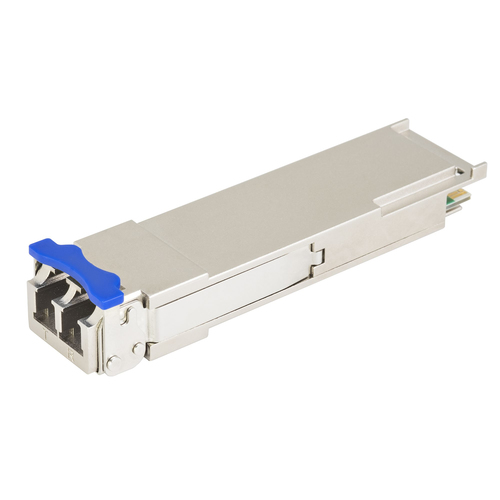

Cisco QSFP-40G-LR4-S Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic
- Cisco QSFP-40G-LR4-S Compatible QSFP+40GBASE-LR4 (40 Gbps) Gigabit Ethernet
- 1270nm to 1330nm | Single Mode (SMF)
- Up to 10km (6.2mi)
- LC Connector DDM
- For Cisco switches like: Firepower ASR1000 ASR9000 C9300 C3850 NCS540 C9500 C9200
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The QSFP40GLR4S is a Cisco QSFP-40G-LR4-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 40000 Mbit/s
- Interface type
- QSFP+
- Single-mode fiber (SMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- LR4
- Maximum transfer distance
- 10000 m
- Tx wavelength (min)
- 1270 nm
- Tx wavelength (max)
- 1330 nm
- Networking standards
- IEEE 802.3ba
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Housing material
- Aluminium
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 1489426 h
Power
- Power consumption (typical)
- 2.5 W
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 18.4 mm
- Depth
- 72 mm
- Height
- 8.5 mm
- Weight
- 44 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 132 mm
- Package depth
- 188 mm
- Package height
- 49 mm
- Package weight
- 95 g
Logistics data
- Master (outer) case width
- 250 mm
- Master (outer) case length
- 300 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 200 mm
- Products per master (outer) case
- 36 pc(s)
- Country of origin
- China
