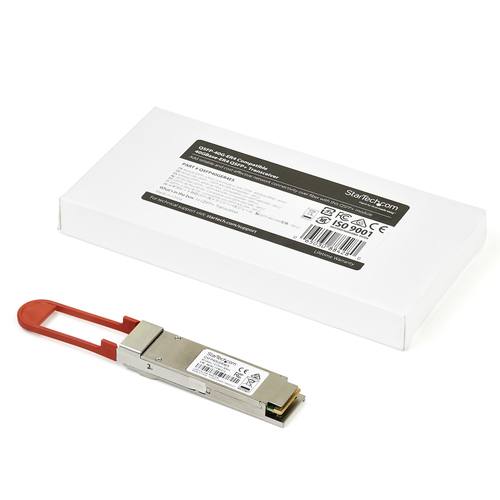

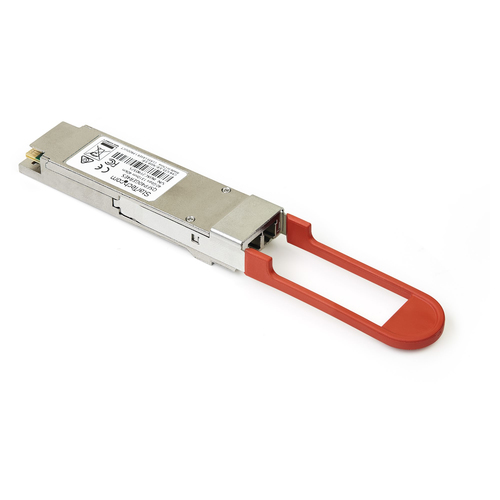

Dell EMC 3CSFP91 Compatible QSFP+ Module - 40GBASE-ER4 - Single Mode Fiber (SMF) - 40GE Gigabit
- 40GBASE-ER4 40 Gbps Gigabit Ethernet
- 1270nm to 1330nm Single Mode
- Up to 40 km (24.9 mi)
- LC Connector DDM
- Hot-Swappable and MSA Compliant
- Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
40 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
100% Dell EMC Compatible. Guaranteed.
The QSFP40GER4ES is a Dell EMC QSFP-40G-ER4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand compatible switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-ER4Q compliant networks, with a maximum distance of up to 40 km (24.8 mi).
Technical Specifications:
• Wavelength: 1311nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 8,596,956 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a StarTech.com Lifetime Warranty and Free Lifetime Multilinugal Technical Support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the dependability and reliability you need to ensure consistent network performance.
The StarTech.com Advantage
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 40000 Mbit/s
- Interface type
- QSFP+
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- MPO
- Maximum transfer distance
- 40000 m
- Wavelength
- 1311 nm
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 8596956 h
- Brand compatibility
- Dell
- Compatible products
- QSFP-40G-ER4
Power
- Power consumption (typical)
- 1.6 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, REACH
Weight & dimensions
- Width
- 58.4 mm
- Depth
- 13.9 mm
- Height
- 12.6 mm
- Weight
- 40 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 120 mm
- Package depth
- 205 mm
- Package height
- 350 mm
- Package weight
- 60 g
Logistics data
- Master (outer) case width
- 120 mm
- Master (outer) case length
- 205 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 350 mm
- Products per master (outer) case
- 168 pc(s)
