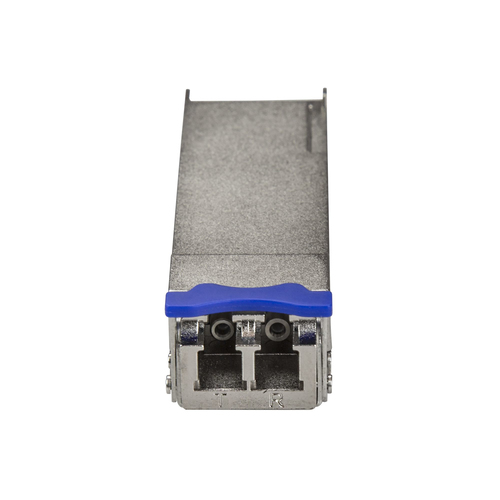

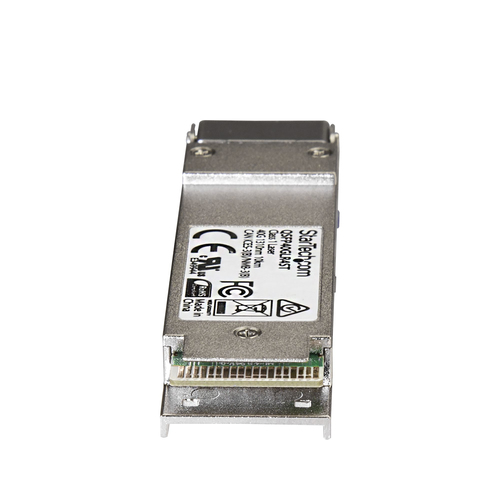

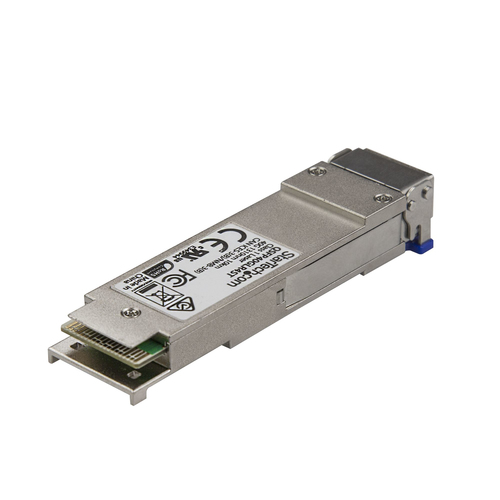

Cisco QSFP-40GE-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic
- Cisco QSFP-40GE-LR4 Compatible QSFP+40GBASE-LR4 (40 Gbps) Gigabit Ethernet
- 1270nm to 1330nm | Single Mode (SMF)
- Up to 10km (6.2mi)
- LC Connector DDM
- For Cisco switches like: C4500 N7000 N7700 N9300 N9500 NCS5000 C9800 N3000
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The QSFP-40GE-LR4-ST is a Cisco QSFP-40GE-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 244,610,583 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 40000 Mbit/s
- Interface type
- QSFP+
- Single-mode fiber (SMF) supported
- Yes
- Multi-mode fiber (MMF) supported
- No
- Fiber optic connector
- LC
- SFP transceiver standard
- LR4
- Fiber ethernet cabling technology
- 40GBASE
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 244610583 h
- Brand compatibility
- Cisco
- Compatible products
- QSFP-40GE-LR4
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Width
- 122 mm
- Depth
- 18.3 mm
- Height
- 8.5 mm
- Weight
- 49 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 120 mm
- Package depth
- 205 mm
- Package height
- 35 mm
- Package weight
- 60 g
Logistics data
- Master (outer) case width
- 120 mm
- Master (outer) case length
- 205 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 35 mm
- Products per master (outer) case
- 1 pc(s)
