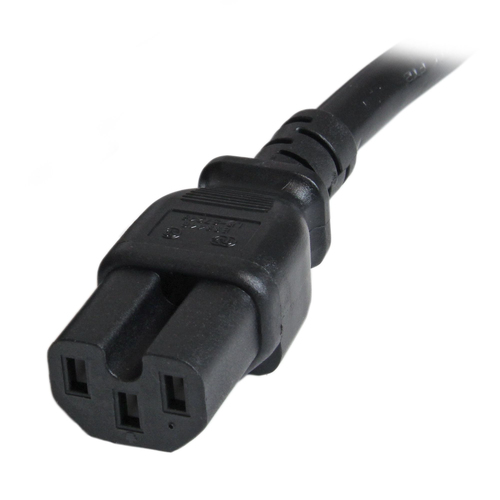

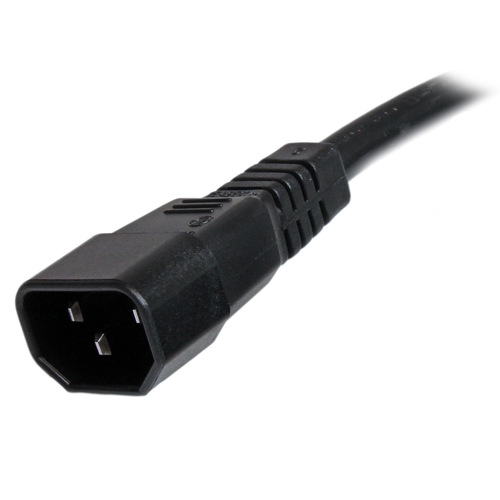

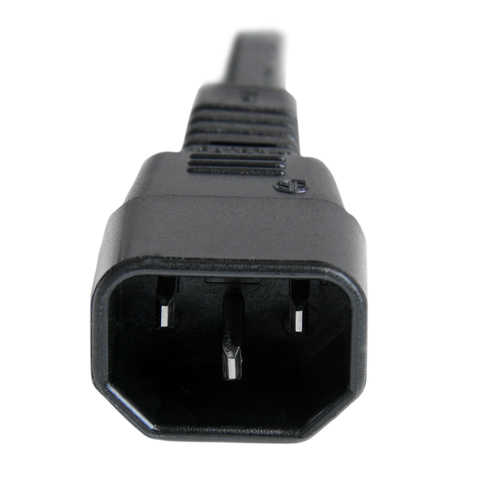

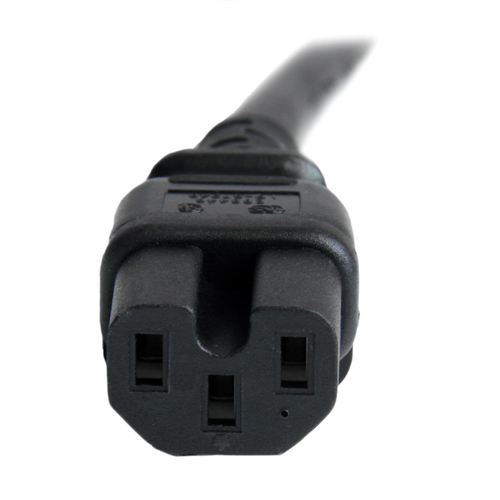

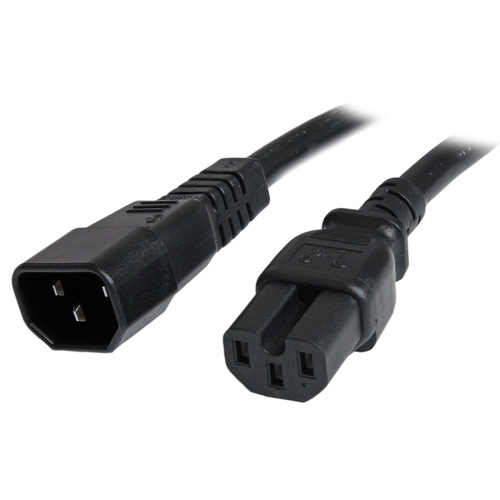

3ft (1m) Heavy Duty Extension Cord, IEC 320 C14 to IEC 320 C15 Black Extension Cord, 15A 250V
- Heavy Duty Power Extension Cord 3ft (0.9m) | IEC 60320 C14 to IEC 60320 C15 connectors | For workstations/home office | Indoor use | 250V at 15A (Max)
- UL listed (UL62/UL817) | Fully molded strain relief connectors for durability | Fire Rating VW-1 | 3 Conductor extension cord
- AC power Cord | IEC 60320 C14 to IEC 60320 C15 | 14AWG | 250V 15A (Max) | Jacket Rating: SJT | Jacket Material PVC | Black | Temperature Range 37 to 221DEG F (3D to 105DEG C) | Cable Outer Diameter 0.36in (9.14mm)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
3ft (1m) Heavy Duty Extension Cord, IEC C14 to IEC C15
The PXTC14C153 C14 to C15 Power Cord (3 ft) features a C15 connector rated for high-temperature equipment, as well as 14 AWG wire suitable for high power connections - a reliable solution for connecting to C14 Power Distribution Units (PDU) located in switchgear rooms and data center environments, or large server applications that require a higher rated, heavier gauge cable.
Designed and constructed of high quality materials, this C14 to C15 power cable is backed by our Lifetime Warranty.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 0.9 m
- Connector 1
- C14 coupler
- Connector 2
- C15 coupler
- Connector 1 standard
- IEC 60320
- Connector 2 standard
- IEC 60320
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 14
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 250 V
- Maximum current
- 15 A
Operational conditions
- Operating temperature (T-T)
- 3 - 105 °C
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Diameter
- 9.14 mm
- Weight
- 181 g
Packaging data
- Package width
- 200 mm
- Package depth
- 81 mm
- Package height
- 47 mm
- Package weight
- 186 g
Logistics data
- Master (outer) case width
- 533 mm
- Master (outer) case length
- 359 mm
- Master (outer) case height
- 279 mm
- Products per master (outer) case
- 125 pc(s)
