StarTech.comPower Cables

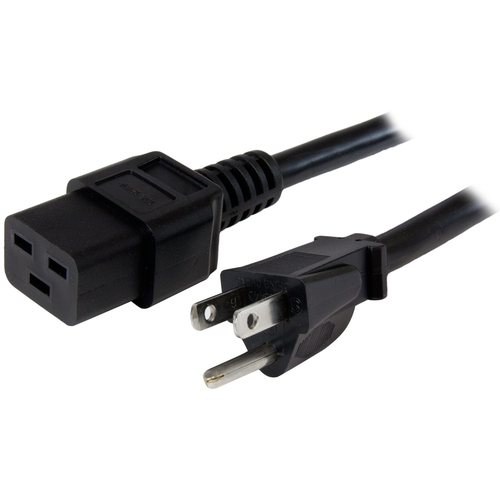

10ft (3m) Heavy Duty Power Cord, NEMA 5-15P to C19 AC Power Cord, 15A 125V, 14AWG, Computer Power
- 10ft (3m) universal power cord with NEMA 5-15P and IEC 60320 C19 connectors | Rated to carry 125V at 15A (Max)
- UL listed (UL62/UL817) | Durable molded connectors | Fire Rating: VW-1 | 3 Conductor power cable
- NEMA 5-15P to IEC 60320 C19 | 14AWG | Jacket Rating: SJT | Jacket Material PVC | Temperature Range 37 to 167DEG F | Cable Outer Diameter 0.36in
- IEC C19 connector works with servers computers PDUs and more | thick gauge replacement PC power supply cable/cord
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10ft (3m) Heavy Duty Power Cord, NEMA 5-15P to C19 Cable
This NEMA 5-15P-to-C19 power cord features 14 AWG wire that's suitable for high-power connections, making it perfect for high-end server equipment such as routers, switches, Power Distribution Units (PDU), etc.
Plus, you can use the cable to extend the reach of your existing power cord by 10 feet, which gives you the extra distance you need to place your devices according to your server room configuration.
Expertly designed and constructed of high-quality materials, the StarTech.com PXT515191410 power cord is backed by a lifetime warranty.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 3 m
- Connector 1
- NEMA 5-15P
- Connector 2
- C19 coupler
- Connector 2 standard
- IEC 60320
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 14
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 125 V
- Maximum current
- 15 A
Operational conditions
- Operating temperature (T-T)
- 3 - 75 °C
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Diameter
- 9.1 mm
- Weight
- 490 g
Packaging data
- Package width
- 100 mm
- Package depth
- 246 mm
- Package height
- 72 mm
- Package weight
- 500 g
Logistics data
- Master (outer) case width
- 346 mm
- Master (outer) case length
- 526 mm
- Master (outer) case height
- 246 mm
- Products per master (outer) case
- 50 pc(s)
