StarTech.comPower Cables

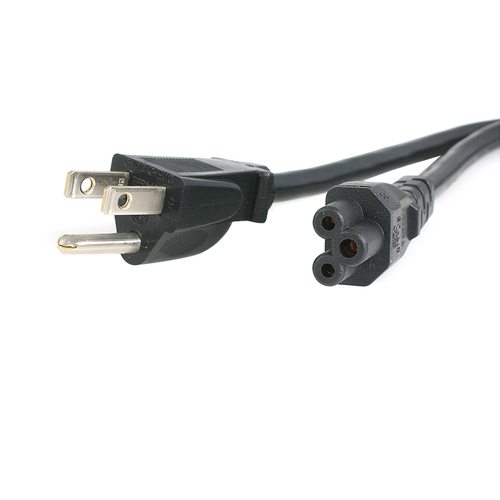

10ft (3m) Laptop Power Cord, NEMA 5-15P to C5 (Clover Leaf), 10A 125V, 18AWG, Laptop Replacement
- AC POWER CABLE: 10ft 18AWG laptop power cord NEMA 5-15P to IEC C5 | Rated for 125V at 10A
- UL listed | Molded strain relief connectors | Fire Rating: VW-1 | 3 Conductor notebook power cable | 100% Copper
- SPECS: NEMA 5-15P to IEC 60320 C5 | 18AWG | 125V 10A (Max) | Jacket Rating: SVT | Jacket Material: PVC | Black | Temperature Range: 35 to 140 DEGF | Cable Outer Diameter: 0.3in (7.62mm)
- Computer Power Cord works with most power bricks for laptops/notebooks
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10ft (3m) Laptop Power Cord, NEMA5-15P to C5 AC Cable, 18AWG
The PXT101NB3S10 10-foot 3-Slot Laptop Power Cord features one NEMA 5-15P and one C5 connector - a suitable replacement notebook power cord or spare power cord for your HP, Toshiba or other compatible laptop.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 3 m
- Connector 1
- NEMA 5-15P
- Connector 2
- C5 coupler
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 18
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 125 V
- Maximum current
- 10 A
Operational conditions
- Operating temperature (T-T)
- 2 - 60 °C
Certificates
- Compliance certificates
- RoHS, CE
Weight & dimensions
- Width
- 25 mm
- Height
- 20 mm
- Diameter
- 7.62 mm
- Weight
- 295 g
Packaging data
- Package width
- 199 mm
- Package depth
- 178 mm
- Package height
- 42 mm
- Package weight
- 304 g
Logistics data
- Master (outer) case width
- 519 mm
- Master (outer) case length
- 334 mm
- Master (outer) case height
- 282 mm
- Products per master (outer) case
- 80 pc(s)
Downloads
