1-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI Express LAN Card, Realtek

Part # PR15GR-NETWORK-CARDUPC 065030911337Warranty: 2 Years0.25 lb

Add a high-speed Ethernet port to a desktop/server with this Network Card featuring a Realtek RTL8126 chip
2.5G/5G speeds maximize Cat5e infrastructure
Multi-Gig performance without cabling upgrades
Auto-installs drivers in most major OS incl. Windows/Windows Server and Linux
Compatible with Intel and AMD systems via a PCI Express x1 x2 x4 x8 x16 slot
Supports auto-negotiation between 5G/2.5G/1G/100M/10M

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer

This TAA-compliant 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.

Plug And Play Compatible

This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.

Universal Fit

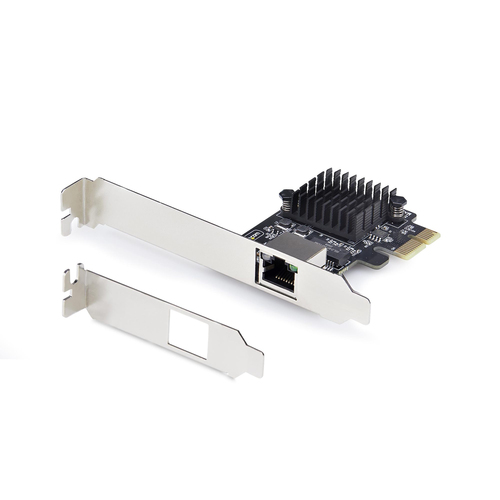

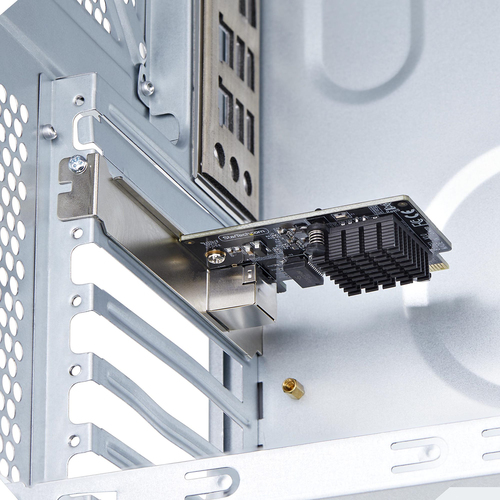

The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s
Wake-on-LAN ready: Yes
Auto MDIX IEEE: Yes
Jumbo frames support: Yes
Jumbo frames: 9000

Design

Component for: PC/Server
Product colour: Black, Silver
Internal: Yes
Chipset: Realtek RTL8126
LED indicators: Speed, Status

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022
