PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

Part # PEX300WN2X2UPC 065030844482Warranty: 2 Years0.77 lb

Wireless
PCI Express WLAN
300 Mbit/s
Wi-Fi Single-band (2.4 GHz)
Internal Chipset: Ralink - RT5392

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

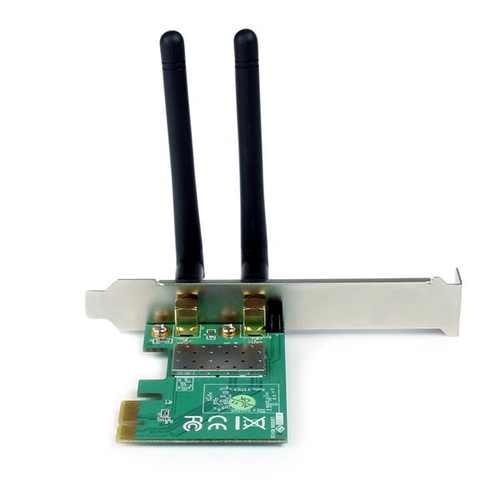

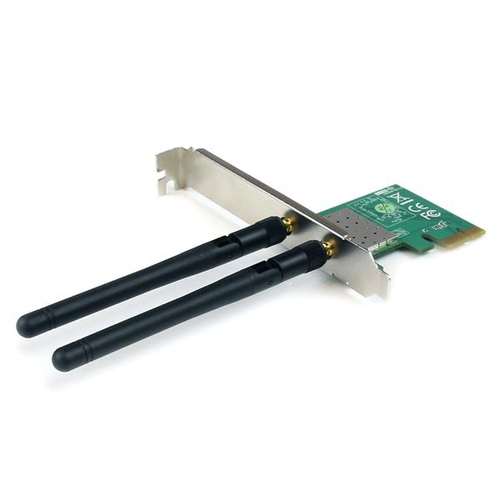

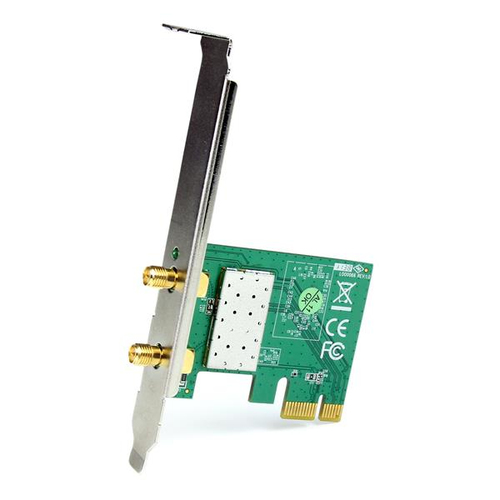

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage

- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks

- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience

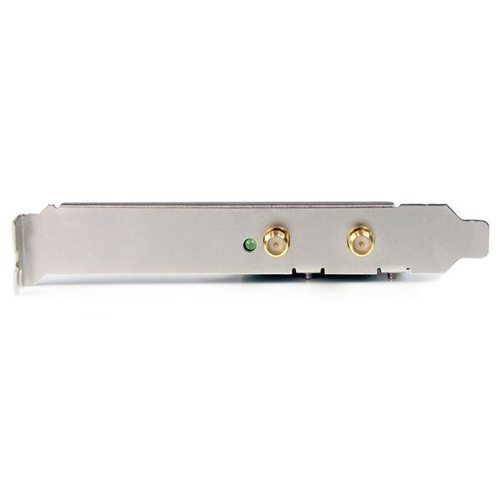

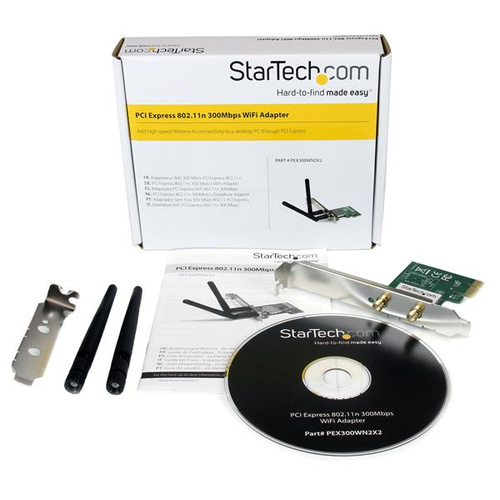

- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer

Specifications

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN

Network

Maximum data transfer rate: 300 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi: Yes
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.484 GHz
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 300 Mbit/s
Modulation: CCK, DBPSK, DQPSK, DSSS, OFDM
Security algorithms: AES, TKIP, WEP, WPA, WPA2-PSK
Full duplex: Yes
Supported network protocols: CSMA/CA

Design

Internal: Yes
Antenna: Yes
Antenna design: External
Antenna connector type: RP-SMA
Chipset: Ralink - RT5392
LED indicators: Activity, Link
Certification: CE, FCC, REACH, TAA

System requirements

Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2
