USB TypeC 3Port HubSPEC - 1 USBC Connector?1 HDMI 4K 60Hz Port?1 USBC PD 100W Port?1 USBA 3.0
- 3 in 1 USB-C Hub
- Ultra High-Definition Media Display
- Easy to Use with Plug & Play
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

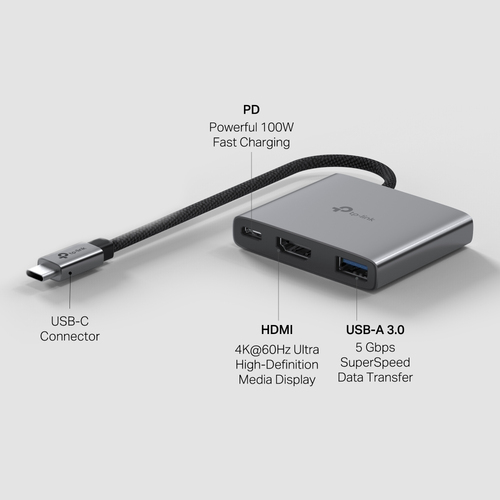

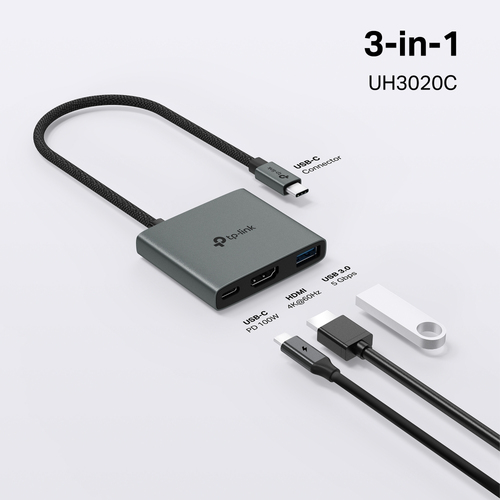

3 in 1 USB-C Hub
UH3020C turns a single USB-C port into 3 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH3020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.

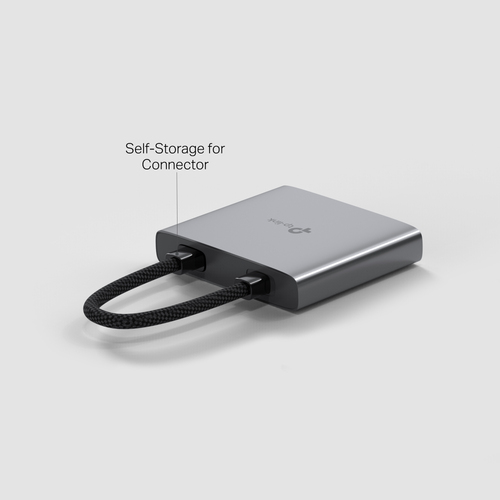

Compact and Elegant Design
The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH3020C more durable. Bring you a better user experience.
Specifications
Ports & interfaces
- Host interface
- USB Type-C
- Hub interfaces
- HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- HDMI ports quantity
- 1
- Ports quantity
- 3
- Card reader integrated
- No
- DC-in jack
- No
Features
- Data transfer rate
- 5000 Mbit/s
- Maximum refresh rate
- 60 Hz
- Supported video modes
- 2160p
- Maximum resolution (HDMI)
- 4096 x 2160 pixels
- Product colour
- Grey
- Housing material
- Aluminium
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 100 W
- Fast charging
- Yes
- Cable type
- Round cable
- Cable length
- 0.18 m
- Plug and Play
- Yes
- Certification
- HDMI
Power
- Power supply type
- USB
System requirements
- Windows operating systems supported
- Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
- Mac operating systems supported
- MacOS
- Linux operating systems supported
- Yes
- Other operating systems supported
- Android, iOS, iPadOS
Weight & dimensions
- Width
- 52.7 mm
- Depth
- 60.5 mm
- Height
- 12.2 mm
Packaging data
- Quantity per pack
- 1 pc(s)
- Package type
- Hanging box
Packaging content
- Quick start guide
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Design
- Cable colour
- Black
Technical details
- Compliance certificates
- BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
