1U 19 inch 8 Port Rack Mount PDU - IEC C13 Socket Rackmount Power Supply/Strip - Horizontal Server
- U 8 Port horizontal rack mount PDU strip w/NEMA C13 sockets provide up to 16A (1920VA) or 20A (4800 VA at 240V)
- 10ft C19 to NEMA5-20p cord incl
- Server rack/data center power distribution unit
- UL Certified
- EIA-310D
- For 19" 2/4 post rack
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add eight C13 power outlets to your server-rack, with this power distribution unit
This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets.
Sleek, professional installation
Unlike some rack power solutions that mount awkwardly, if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle.
Flexible power solution
For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack.
Protects your equipment
The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment.
The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Design
- Type
- Single-phase
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 110 - 240 V
- Maximum current
- 20 A
- Output voltage
- 240 V
- Load capacity
- 1920 VA
- Maximum total current draw per phase
- 20 A
- Surge energy rating
- 3600 J
- Surge protection
- Yes
Certificates
- Compliance certificates
- CE
Sustainability
- Sustainability certificates
- UL ECOLOGO
Weight & dimensions
- Width
- 480 mm
- Depth
- 100 mm
- Height
- 44 mm
- Weight
- 2 kg

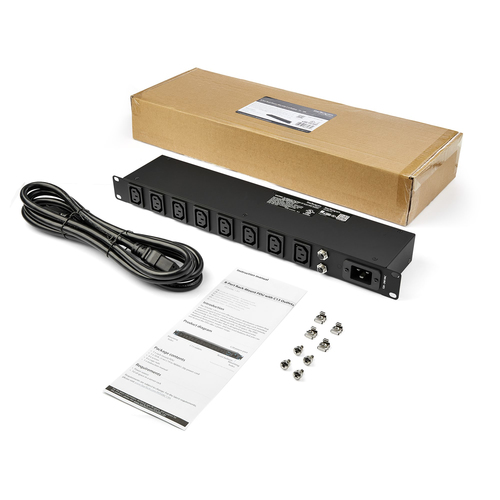

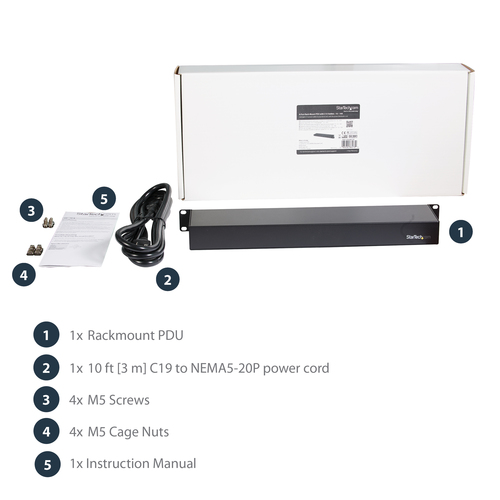

Packaging content
- Cables included
- AC
- Manual
- Yes
- Screws included
- Yes
- Number of screws
- 4
- Screw nuts included
- Yes
- Number of screw nuts
- 4
Packaging data
- Package weight
- 2.4 kg
- Package width
- 553 mm
- Package depth
- 204 mm
- Package height
- 83 mm
Logistics data
- Master (outer) case width
- 574 mm
- Master (outer) case length
- 436 mm
- Master (outer) case height
- 218 mm
- Products per master (outer) case
- 5 pc(s)
