StarTech.comPower Cables

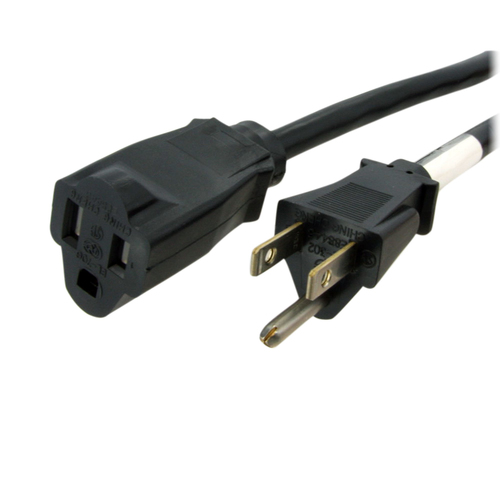

6ft (1.8m) Heavy Duty Extension Cord, NEMA 5-15R to NEMA 5-15P Black Extension Cord, 15A 125V
- Heavy Duty Power Extension Cord 6ft (1.8m) | NEMA 5-15P to NEMA 5-15R connectors | For workstations/home office | Indoor use | 125V / 15A (Max)
- UL listed (UL62/UL817) | Fully molded strain relief connectors for durability | Fire Rating VW-1 | 3 Conductor extension cord
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
6ft (1.8m) Heavy Duty Extension Cord, NEMA5-15R to NEMA5-15P
The PAC101146 Power Cord Extension Cable features a heavy-duty wire gauge (14 AWG) that's suitable for handling higher power levels than typical cables, making it a reliable solution for connecting larger servers to PDUs (Power Distribution Units).
This high quality cable extends your existing power connection by 6ft, enabling you to use a PC or other powered device at a greater distance from the power source/outlet than would typically be possible.
This durable, replacement Power Extension Cable is backed by our Lifetime Warranty.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 1.8 m
- Connector 1
- NEMA 5-15P
- Connector 2
- NEMA 5-15R
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- AWG wire size
- 14
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 125 V
- Input current
- 15 A
Operational conditions
- Operating temperature (T-T)
- 3 - 60 °C
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Diameter
- 9.14 mm
- Weight
- 311 g
Packaging data
- Package width
- 219 mm
- Package depth
- 231 mm
- Package height
- 56 mm
- Package weight
- 329 g
Logistics data
- Master (outer) case width
- 521 mm
- Master (outer) case length
- 337 mm
- Master (outer) case height
- 231 mm
- Products per master (outer) case
- 60 pc(s)
