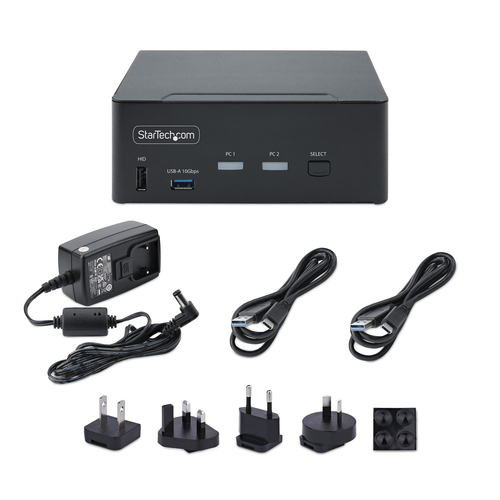

2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB
- Fast switch a keyboard/mouse/audio device and dual 8K 60Hz / 4K 144Hz DisplayPort monitors between two DisplayPort-enabled desktops
- Supports up to 8-bit YCbCr 4:4:4
- USB Emulation ensures compatibility with combo keyboards/mice
- 2x USB 10Gbps hub ports
- Universal KVM Switch features push-buttons or hotkey switching
- LEDs
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 4
- DisplayPort version
- 1.4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Console ports
- 3.5mm headphone, DisplayPort, USB A
- Console USB ports quantity
- 3
- Console DisplayPorts ports quantity
- 2
- USB hub
- Yes
- USB 2.0 ports quantity
- 1
- Audio connections
- Yes
- Headphone outputs
- 3
- DC-in jack
- Yes
Performance
- HD type
- 8K Ultra HD
- Maximum resolution
- 7680 x 4320 pixels
- Data transfer rate (max)
- 10 Gbit/s
- Scan interval
- 3,8,15,30 s
- High Dynamic Range (HDR) supported
- Yes
- Number of users
- 1 user(s)
- Maximum refresh rate
- 144 Hz
- Chipset
- Genesys Logic - GL3590
- Number of displays supported
- 2
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 168000 h
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Power
- Input voltage
- 100 - 240 V
- Input current
- 1 A
- Output voltage
- 12 V
- Output current
- 3 A
- Power consumption (typical)
- 36 W
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Sustainability
- Compliance certificates
- RoHS, Trade Agreements Act (TAA)
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 100 mm
- Depth
- 160 mm
- Height
- 60 mm
- Weight
- 800 g
Packaging data
- Package width
- 238 mm
- Package depth
- 184 mm
- Package height
- 89 mm
- Package weight
- 1.4 kg
Packaging content
- Cables included
- USB Type-A to USB Type-C
- Quick installation guide
- Yes
- Rubber feet
- Yes
Other features
- IP control
- No
Logistics data
- Master (outer) case width
- 260 mm
- Master (outer) case length
- 395 mm
- Master (outer) case height
- 300 mm
- Products per master (outer) case
- 6 pc(s)
