Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging

Part # 155NA-USB4-DOCKUPC 065030899673Warranty: 3 Years2.7 lb

Connect two 4K 120Hz or 60Hz displays through a single USB4 / Thunderbolt port with uncompressed video powered by your laptop's native GPU

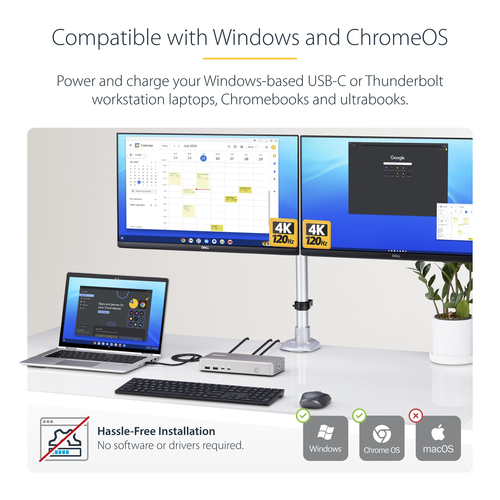

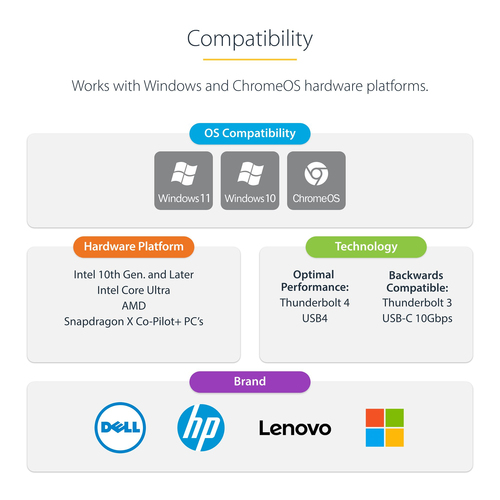

Plug-and-play on Windows and ChromeOS
Driverless (not compatible with macOS)
Engineered for scalable zero-touch rollouts across shared workspaces, and BYOD environments
2.5GbE connection
Transfer large files or work directly from cloud environments

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Turn your USB4 laptop into a multi-monitor high-resolution workstation

This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

Flexible High-Performance Video

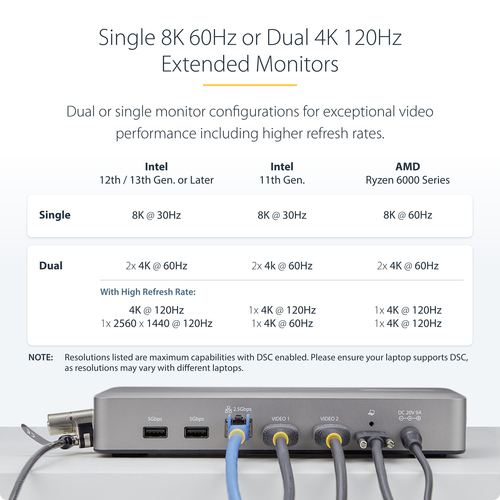

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

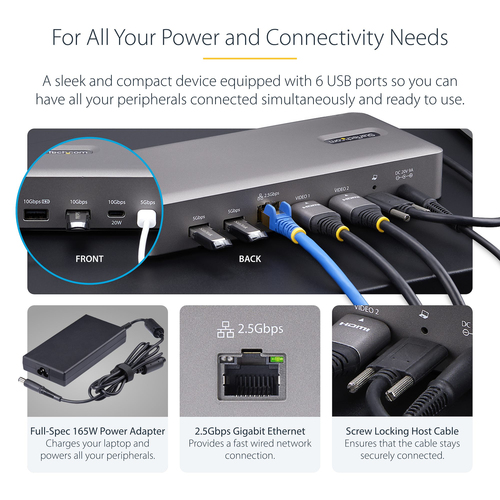

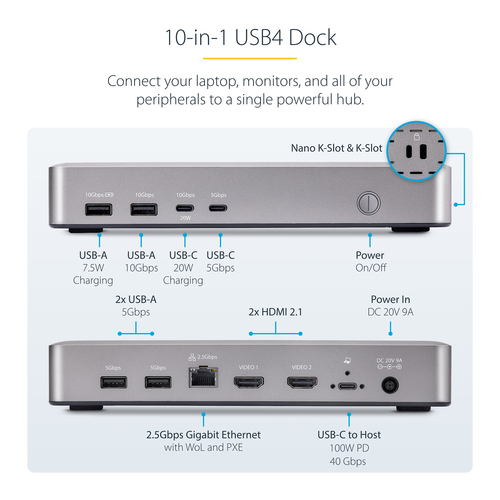

The dock features:

• 2x HDMI ports to connect displays.

• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.

• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

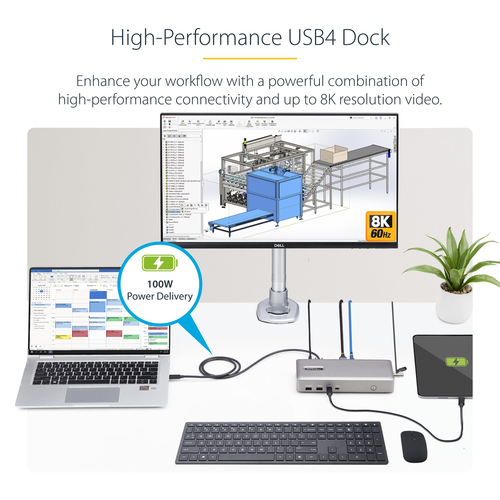

100W USB Power Delivery

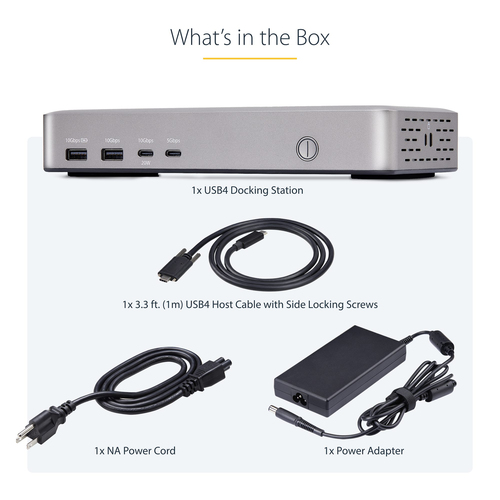

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
Microphone in: No
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Wake-on-LAN ready: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 40 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 2
Maximum refresh rate: 120 Hz

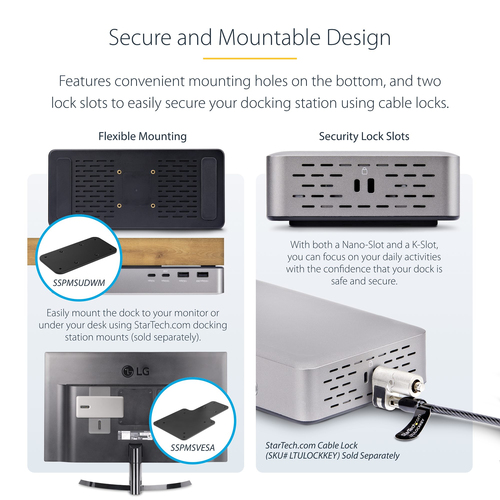

Cable lock slot: Yes
Cable lock slot type: Kensington, Nano
Product colour: Silver
LED indicators: Power
UASP support: Yes
Housing material: Plastic

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 9 A
Power consumption (typical): 165 W
Power plug type: Type M
Compatible power plug types: US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported: ChromeOS
