2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 1x HDMI & 1x DP Monitor, 2-Port USB
- HDMI+DP KVM switch enables a mixed-display setup without adapters
- Share a keyboard/mouse/audio between two computers
- 2x USB 3.0 ports
- 2x USB HID ports
- KVM Switch provides BIOS/UEFI control
- Works with any OS (Windows/macOS/ChromeOS/Linux) and all hardware platforms ( Intel/AMD/Apple)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Share a mouse, keyboard, USB 5Gbps hub, 4K 60Hz DisplayPort monitor, and a 4K 60Hz HDMI monitor between two computers
The HDMI and DisplayPort KVM switch enables a mixed-display setup of an HDMI and a DisplayPort monitor without the need for adapters or converters. It allows you to share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers.
HDMI + DisplayPort
Connect an HDMI and a DisplayPort monitor to this KVM switch, both supporting resolutions up to 4K 60Hz for high-definition content without the need for adapters. The HDMI port is ideal for connecting to a wide range of devices, including TVs, monitors, and projectors, while the DisplayPort port is ideal for high-performance monitors.
Easily Share USB Devices
The USB 3.0 hub provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives. It also includes two dedicated USB HID ports for a keyboard and mouse.
No Drivers or Software Required
The TAA-compliant KVM switch offers BIOS/UEFI control and works with any operating system, including Windows, macOS, ChromeOS, and Linux, without requiring any software. It is compatible with all hardware platforms, such as Intel, AMD, and Apple.
The KVM switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation. LEDs offer quick visual port selection status, and you can listen to audio from one computer while controlling another.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in various environments, and it provides 8kV air and 6kV contact ESD protection.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI/DisplayPort
- HDMI ports quantity
- 2
- HDMI version
- 2.0
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 2
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
- Console USB ports quantity
- 2
- Console DisplayPorts ports quantity
- 1
- Console HDMI ports quantity
- 1
- USB hub
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
- DC-in jack
- Yes
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2160 pixels
- Data transfer rate (max)
- 5 Gbit/s
- Audio channels
- 7.1
Design
- Rack mounting
- No
- Product colour
- Black
- LED indicators
- Yes
- Mean time between failures (MTBF)
- 138390 h
Display
- Built-in display
- No
Power
- Input voltage
- 100 - 240 V
- Input current
- 1 A
- Output voltage
- 12 V
- Output current
- 3 A
- Power consumption (typical)
- 36 W
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Sustainability
- Compliance certificates
- RoHS, Trade Agreements Act (TAA)
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 90%
Weight & dimensions
- Width
- 100 mm
- Depth
- 163 mm
- Height
- 66 mm
- Weight
- 750 g
Packaging data
- Package width
- 332 mm
- Package depth
- 162 mm
- Package height
- 128 mm
- Package weight
- 128 g

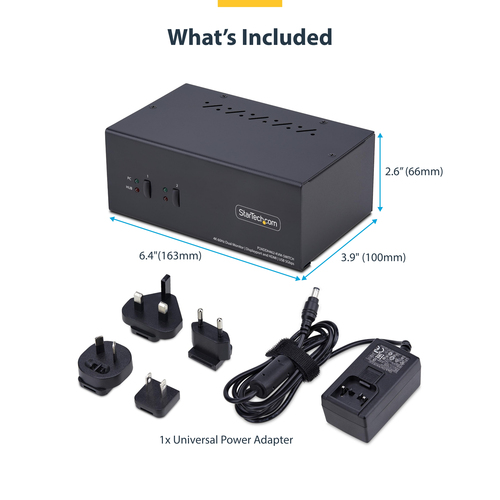

Packaging content
- Quick installation guide
- Yes
Other features
- IP control
- No
Logistics data
- Master (outer) case width
- 513 mm
- Master (outer) case length
- 352 mm
- Master (outer) case height
- 301 mm
- Products per master (outer) case
- 6 pc(s)
