4-Port GbE SFP Network Card, PCIe 2.0 x2 (x4, x8, x16 Compatible), Intel I350-AM4 4x 1GbE

Part # P041GI-NETWORK-CARDUPC 065030900287Warranty: 2 Years0.3 lb

Quad-Port PCIe network interface card with Intel I350-AM2 chipset adds two open SFP slots to a desktop/server
Works w/ Single/Multimode SFPs
LED Link/Speed indicators
1Gbps (full-duplex) bandwidth per slot
PXE boot enabled for OS deployment/updates
Jumbo frame support for reduced packet overhead

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Add four fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or server

Add up to four 1GbE SFP modules to a PCI Express (PCIe) 2.0 x2 (or higher) slot in an IT Administrator workstation or server backplane, using this 4-Port SFP Network Controller.

High Performance Intel Chipset

The network controller features an Intel I350 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.

Hardware and Operating System Compatibility

The network interface controller connects to an available x2 PCI Express 2.0 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC).

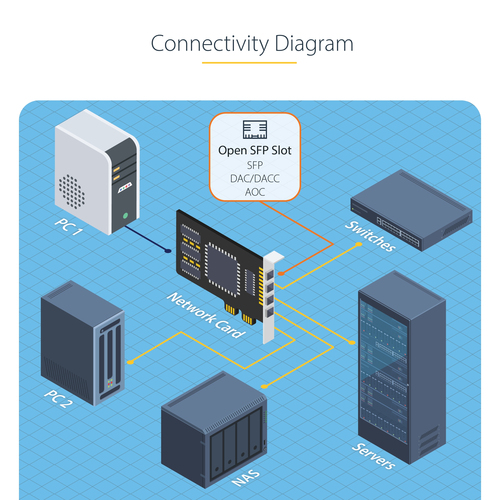

Flexible Network Connections

The card features four SFP slots for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 4
Fiber optic connector: SFP
PCI version: 2.0

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z
Auto MDIX IEEE: Yes
Full duplex: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Supported network protocols: IPv4, IPv6, TCP/UDP

Design

Component for: PC
Product colour: Black
Internal: Yes
LED indicators: Speed, Status

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

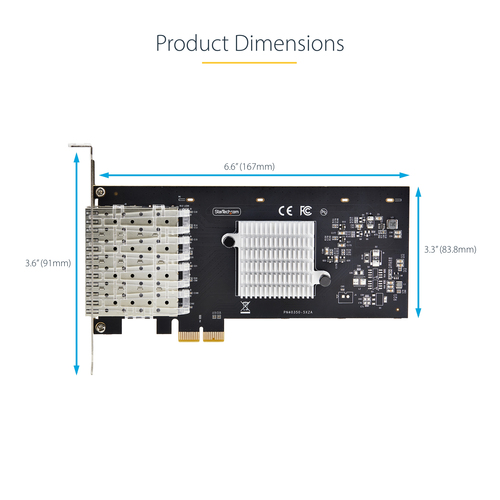

Width: 83 mm
Depth: 167 mm
Height: 10 mm

Packaging data

Package width: 154 mm
Package depth: 218 mm
Package height: 38 mm
Package weight: 135 g

Packaging content

Quick installation guide: Yes

Logistics data

Master (outer) case width: 446 mm
Master (outer) case length: 378 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 40 pc(s)

Downloads

Product brochure (PDF)User manual (PDF)
