2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card

Part # PR22GI-NETWORK-CARDUPC 065030898140Warranty: 2 Years0.3 lb

Dual-port 2.5Gbps PCIe network card w/ Intel® I225-V chip
Supports NBASE-T and multi-Gigabit speeds
2.5GBASE-T Ethernet card with Intel vPro® support
PXE boot/9K jumbo/VLAN/WoL/QoS
LED indicators around NIC
LAN transformer for reliable communication and reduced EMI

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Dual-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

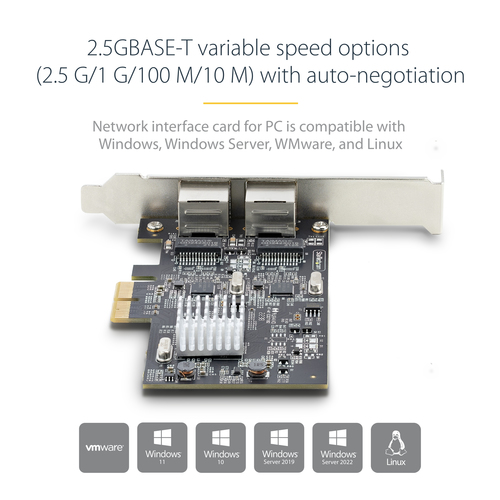

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

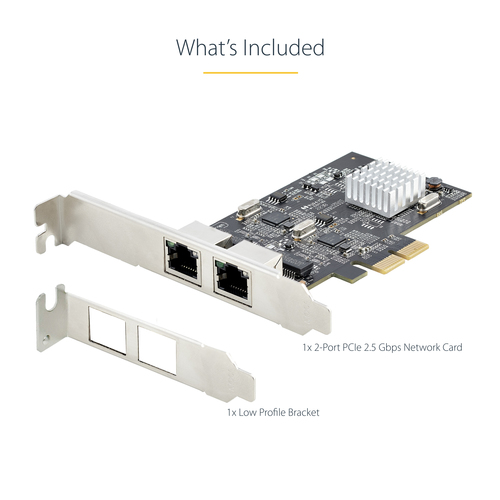

The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 1588, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.1as, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates: 10,1000,2500,100,2000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 10BASE-TX, 1000BASE-T, 2500BASE-T
Wake-on-LAN ready: Yes
Auto MDIX IEEE: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Quality of Service (QoS) support: Yes
VLAN tagging: Yes

Design

Component for: PC/Server
Product colour: Black
Internal: Yes
Chipset: Intel I225-V
LED indicators: Activity, Link

System requirements

Windows operating systems supported: Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

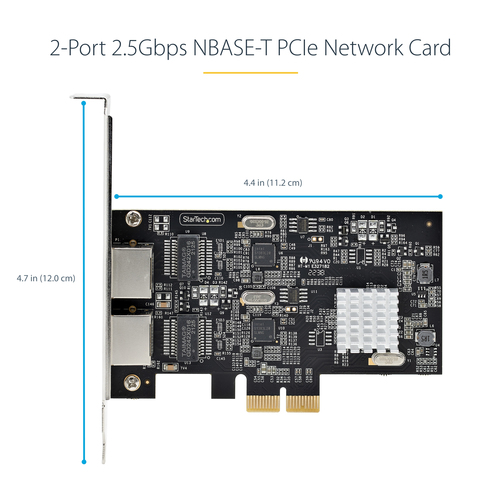

Weight & dimensions

Width: 112 mm
Depth: 120 mm
Height: 18 mm
Weight: 60 g

Packaging data

Low-profile bracket: Yes
Package width: 156 mm
Package depth: 218 mm
Package height: 38 mm
Package weight: 66 g

Packaging content

Quick installation guide: Yes

Logistics data

Master (outer) case width: 450 mm
Master (outer) case length: 380 mm
Master (outer) case height: 330 mm
Products per master (outer) case: 40 pc(s)

Downloads

Product brochure (PDF)User manual (PDF)
