USB Crash Cart Adapter with File Transfer & Video Capture - TAA

Part # NOTECONS02UPC 065030854382Warranty: 2 Years0.7 lb

Compact portable KVM crash cart adapter with integrated KVM cables
Turns your laptop into an instant crash cart
Laptop crash cart adapter provides instant BIOS-Level
Screenshot and video capture at resolutions up to 1920x1200 60 Hz
File and video sharing from laptop to connected server
Auto video scaling when re-sizing view pane

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included

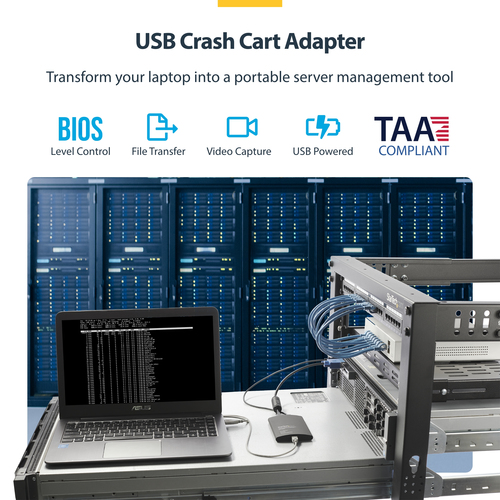

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.

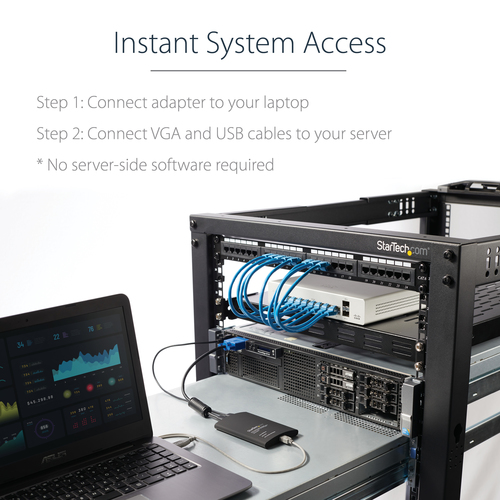

Instant System Access

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.

*Please note that the mouse function may be limited in some BIOS/UEFI environments

Troubleshoot More Efficiently

With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.

Self-Powered Reliability

Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there's no power outlet available.

Take It Anywhere

This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.

StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.

Specifications

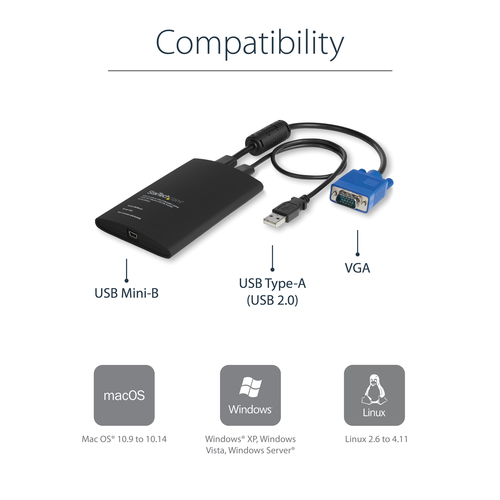

Ports & interfaces

Number of computers controlled: 1
Keyboard port type: USB
Mouse port type: USB
Video port type: VGA
Console USB ports quantity: 1
USB connector type: Mini-USB B
Audio connections: No

Performance

HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Plug and Play: Yes
Daisy chain: No
Number of users: 1 user(s)

Design

Rack mounting: No
Product colour: Black
Housing material: Plastic
Cable length: 0.416 m
LED indicators: Yes
Mean time between failures (MTBF): 909000 h
Certification: CE, FCC, TAA, UL

Display

Built-in display: No
On Screen Display (OSD): No

Power

Power source: USB

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported: Yes
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 74 mm
Depth: 115 mm
Height: 15 mm
Weight: 170 g

Packaging data

Package width: 165 mm
Package depth: 301 mm
Package height: 55 mm
Package weight: 363 g

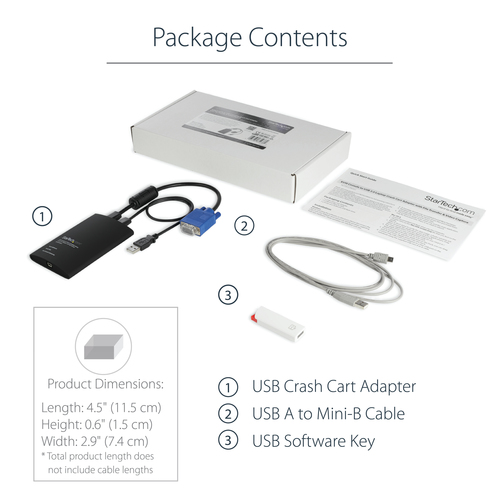

Packaging content

Cables included: USB
Software included: Yes

Other features

Compatible operating systems: Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2012, 2008 R2 Mac OS 10.x (Tested up to 10.9) Linux 2.6.x - 3.5.x (32/64bit)
