StarTech.com MSTCDP122DP Drag to turn · 8 views
StarTech.comUSB Graphics Adapters

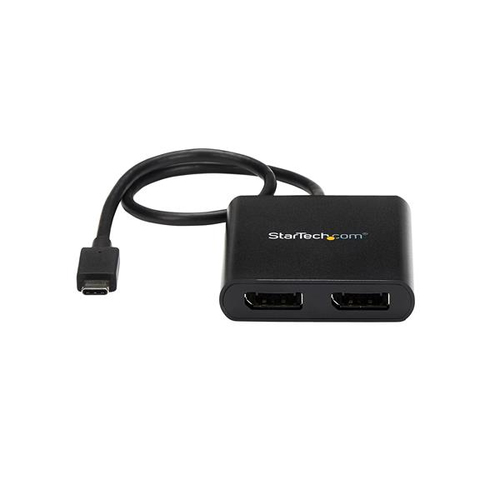

USB-C to Dual DisplayPort 1.2 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 30Hz/1080p 60Hz DP

Part # MSTCDP122DPUPC 065030864497Warranty: 3 Years0.4 lb

  • USB-C adapter for multiple monitors works w/USB Type-C DP Alt-Mode Windows PCs to connect up to 2 independent displays
  • Dual 4K 30Hz or 2x 1080p 60Hz DisplayPort monitors | DP 1.2/HBR2/MST Hub | Works w/ Thunderbolt 3
  • Video splitter increases productivity by adding extended/mirrored screens
  • Multi Stream Transport hub works w/Dell XPS Precision Latitude/Lenovo ThinkPad X1 Carbon Extreme/Surface Laptop 3 Book 3 Pro 7/HP ProBook EliteBook Spectre ZBook
  • No Drivers Windows/Linux | 1' cable
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Dual Monitor Adapter | Windows | Thunderbolt 3 Compatible

This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

01

Multitasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.

Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

02

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.

03

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP122DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

04

The StarTech.com Advantage

- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 2x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible

- CONVENIENCE: With a built-in 1ft cable, this bus-powered 2-port MST hub provides an easy method to connect up to two independent screens with any DisplayPort over USB Type-C Windows host device

- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers

Specifications

Performance

USB connector type
USB Type-C
USB connector gender
Male
DVI output
No
HDMI output
No
DisplayPort output
Yes
Number of displays supported
2
DisplayPort version
1.2
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
30 Hz
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Chipset
MegaChips - STDP4320, VIA/VLI - VL100
Certification
CE, FCC, REACH

Design

Product colour
Black
Integrated USB cable
Yes

System requirements

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Weight & dimensions

Width
58 mm
Depth
386 mm
Height
14 mm
Weight
44 g
USB cable length
0.324 m

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
50 - 90%

Packaging data

Package width
143 mm
Package depth
172 mm
Package height
32 mm
Package weight
133 g

Packaging content

Quick installation guide
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
28 pc(s)
Master (outer) case width
334 mm
Master (outer) case length
501 mm
Master (outer) case height
226 mm
Harmonized System (HS) code
84733020
