3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop

Part # MST14CD123HDUPC 065030887663Warranty: 3 Years0.25 lb

Replacement for MSTCDP123HD
USB Type-C to Triple HDMI MST Hub for laptop drives up to 3x 4K 60Hz displays using a USB C DisplayPort 1.4 host with DSC
2ch HDMI Audio
HDCP 2.2
Backwards compatible with DP 1.4/DP 1.2 hosts at lower resolutions
Multi-monitor adapter adds up to three extended or mirrored displays

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

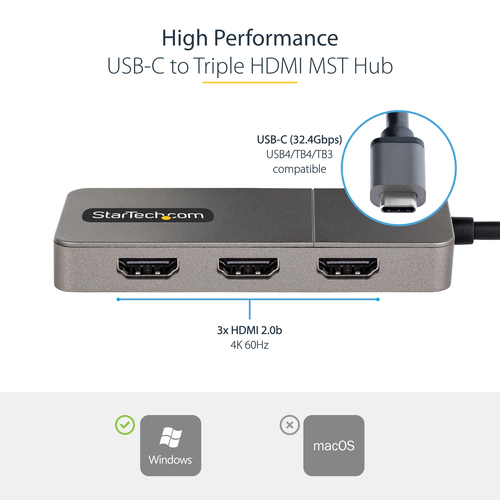

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors

This USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.

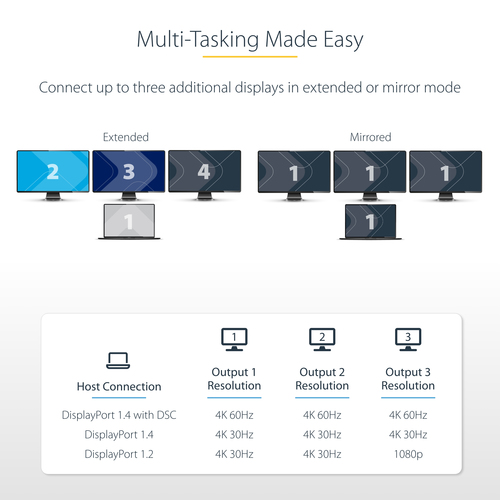

Multi-Tasking Made Easy

Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.

Host Connection

Max Resolution

Output 1

Max Resolution

Output 2

Max Resolution

Output 3

Example Host

Processor/Graphics

DisplayPort 1.4 with DSC

4K 60Hz

*Some Intel 11th Gen

Intel 12th Gen Processors & Later

Discrete AMD & Nvidia GPU's that support DSC

DisplayPort 1.4

4K 30Hz

Intel 10th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Discrete AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

Specifications

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
DVI output: No
High Dynamic Range (HDR) supported: Yes
HDMI output: Yes
DisplayPort output: No
Number of displays supported: 3
HDMI ports quantity: 3
HDMI version: 2.0
HDCP: Yes
HDCP version: 2.2
Maximum resolution: 3840 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 2.0 channels
Chipset: Synaptics VMM5310

Design

Product colour: Grey
Housing material: Plastic

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
