3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.4 MST Hub, Triple 4K 60Hz DP

Part # MST14CD123DPUPC 065030884389Warranty: 3 Years0.25 lb

USB-C to Triple DisplayPort MST Hub for 3x 4K 60Hz monitors | DP 1.4/DSC/HBR3/32.4Gbps/HDR/2ch Audio/MST| TB4/TB3/USB4 compatible | Windows Only
USB Type-C MST Adapter adds three extended/duplicated displays | Compatible with lower resolutions such as 1080p | Built-in 1ft cable | Bus-powered
Unique signal booster for reliable performance even with lower-quality or longer cables | For USB-C DP Alt Mode/Thunderbolt 3 Windows laptops like Lenovo/Dell/HP/Surface | Driverless setup

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

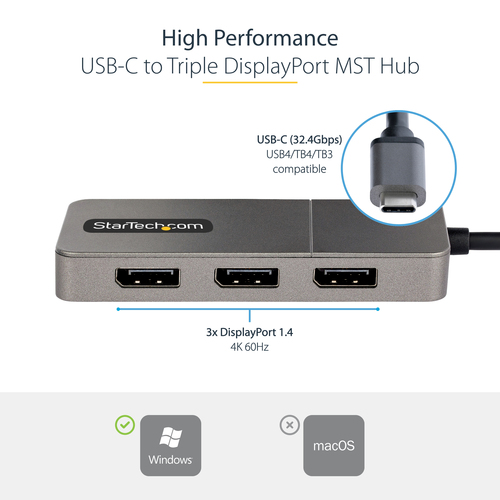

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent DisplayPort™ monitors

This USB-C to DisplayPort MST Hub enables a connection to three DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C enabled host device.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Multi-tasking Made Easy

This USB-C to DisplayPort video splitter allows you to configure your displays in extended or duplicated mode. Connecting three independent 4K 60Hz displays creates high-performance workstations. This empowers increased multi-tasking across your organization, resulting in increased productivity.

Host Connection

Output 1 Resolution

Output 2 Resolution

Output 3 Resolution

DisplayPort 1.4 with DSC

4K 60Hz

DisplayPort 1.4

4K 60Hz

4K 30Hz

DisplayPort 1.2

4K 30Hz

1080p 60Hz

4K at 60Hz and HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Hassle-Free Setup

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to DisplayPort hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.

This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
DVI output: No
High Dynamic Range (HDR) supported: Yes
HDMI output: No
DisplayPort output: Yes
Number of displays supported: 3
DisplayPorts quantity: 3
DisplayPort version: 1.4
Maximum resolution: 4096 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 2.0 channels
Chipset: Synaptics VMM5330
Data transfer rate (max): 32.4 Gbit/s

Design

Product colour: Grey
Integrated USB cable: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac compatibility: No
