StarTech.comInterface Cards/Adapters

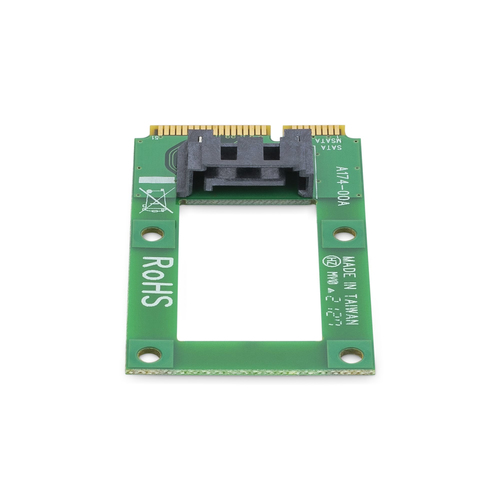

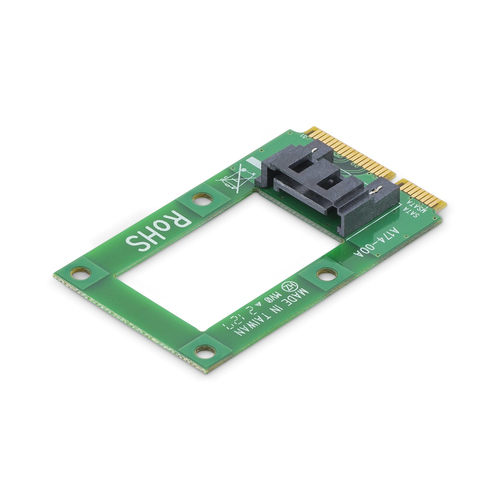

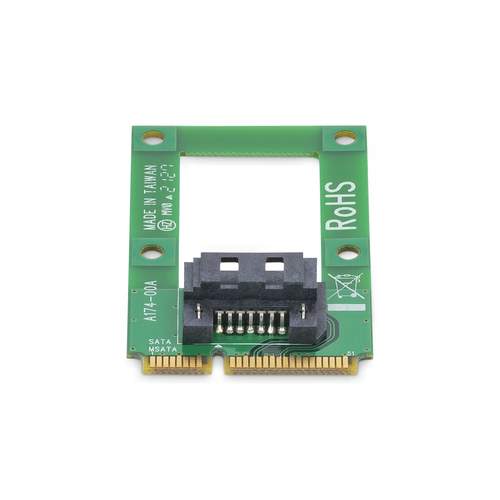

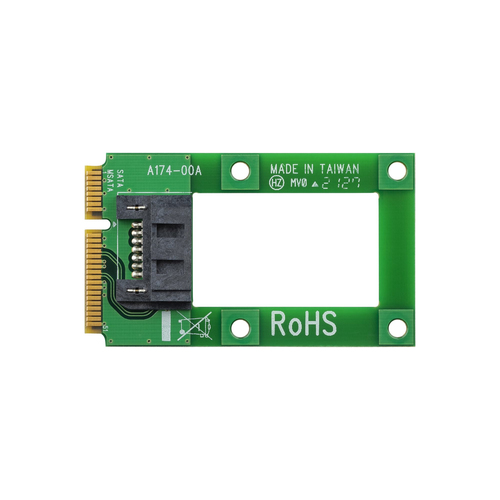

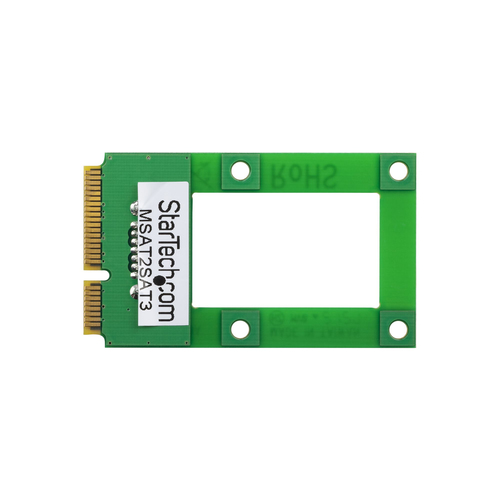

SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives - TAA
- Turn an mSATA host connection into a standard SATA port
- mSATA to SATA HDD/SSD Adapter
- Storage adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive
- Mini SATA to SATA converter card supports SATA I/II/III (up to 6 Gbps)
- Tested with drives of up to 4TB capacity
- Supports all drive heights
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Turn an mSATA host connection into a standard SATA port
The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Ports & interfaces
- Host interface
- mSATA
- Output interface
- SATA
- SATA revision
- 3.0
Design
- Internal
- Yes
- Product colour
- Green
Features
- Data transfer rate (max)
- 6 Gbit/s
Operational conditions
- Operating temperature (T-T)
- 5 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 15 - 90%
Technical details
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Width
- 30 mm
- Depth
- 51 mm
- Height
- 8 mm
- Weight
- 10 g
Packaging data
- Screws included
- Yes
- User guide
- Yes
- Package width
- 126 mm
- Package depth
- 150 mm
- Package height
- 14 mm
- Package weight
- 15 g
Logistics data
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 100 pc(s)
- Master (outer) case width
- 292 mm
- Master (outer) case length
- 686 mm
- Master (outer) case height
- 218 mm
