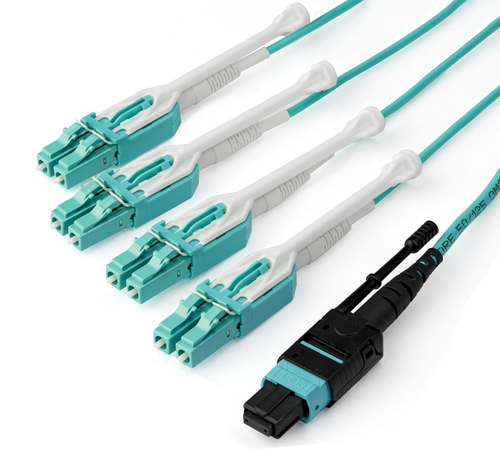

1m (3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G
- 1m (3.3ft) MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors
- Cable individually tested for signal integrity | Ideal for high-density network applications such as SANs, data servers, QSFP+ and SFP+ connections
- 850nm or 1300nm VCSEL | Modal Bandwidth: >=2000MHz·km at 850nm | OFNP Plenum-rated jacket with 50/125µm fiber core/cladding | Cord O.D.: 3.0mm (MTP) | Temperature Range: -10 to 70DEG C (14 to 158DEG F)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

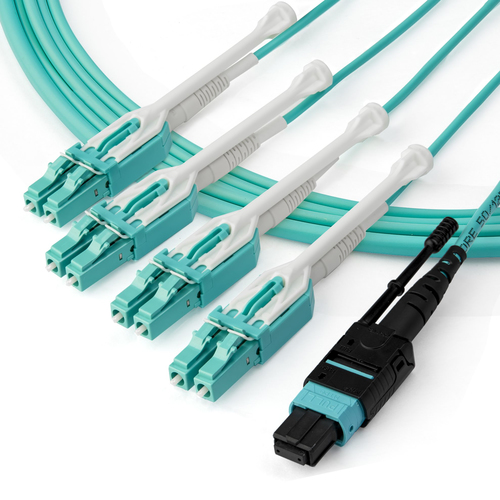

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

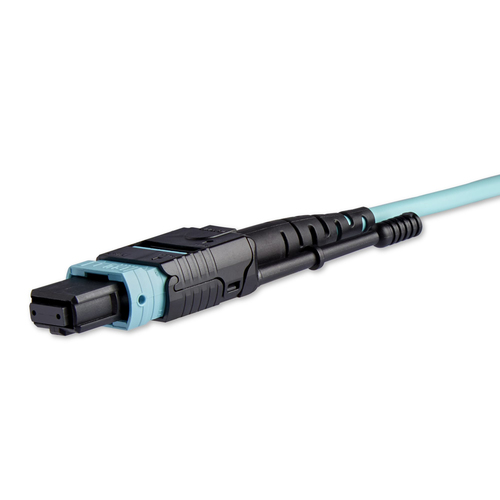

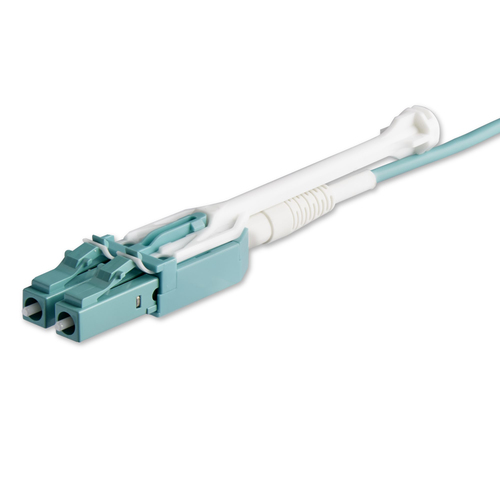

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL1M from StarTech.com is backed by a lifetime warranty.
Specifications
Features
- Cable length
- 1 m
- Fibre optic type
- OM3
- Connector 1
- MPO/MTP
- Connector 2
- 8x LC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Aqua colour
- Core diameter
- 50 µm
- Cladding diameter
- 125 µm
- Fiber mode structure
- Multi-mode
- Data transfer rate
- 40 Gbit/s
Sustainability
- Sustainability compliance
- Yes
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- -10 - 70 °C
- Storage temperature (T-T)
- -10 - 70 °C
Weight & dimensions
- Weight
- 8.6 g
Packaging data
- Package width
- 199 mm
- Package depth
- 140 mm
- Package height
- 19 mm
- Package weight
- 42 g
Logistics data
- Master (outer) case width
- 235 mm
- Harmonized System (HS) code
- 85447000
- Master (outer) case length
- 385 mm
- Master (outer) case height
- 195 mm
- Products per master (outer) case
- 80 pc(s)
Downloads
