6ft (2m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors
- 6ft (1.8m) Mini DisplayPort cable (mDP 1.4) supports 8k 60Hz, 4K 120Hz
- 32.4Gbps, HBR3, 32Ch Audio, MST, GTC, 3D Stereo

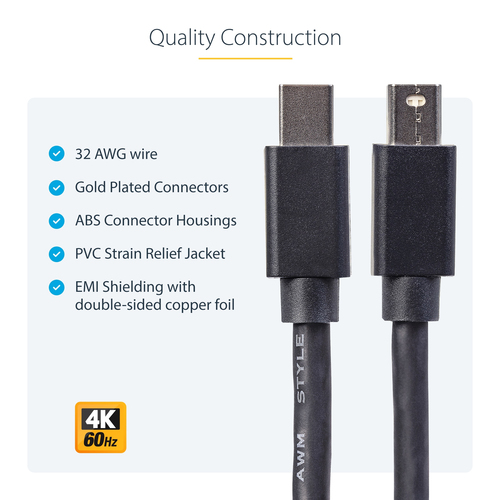

- mDP cable has durable ABS connectors with flexible PVC strain relief prevents damage due to bend
- Mini DP cord for home / office works with laptop (Thunderbolt 2 or Mini-DP port) / workstations with FirePro™ W9100/8100/NVS 810/510 graphic card
- Apple MacBook Pro/Air/Microsoft Surface Pro
- Connect to a UHD/4K monitor/projector/display
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Create a high-resolution 8k or 4k connection with HBR3 support between your Mini DisplayPort™-equipped laptop and monitor
This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.

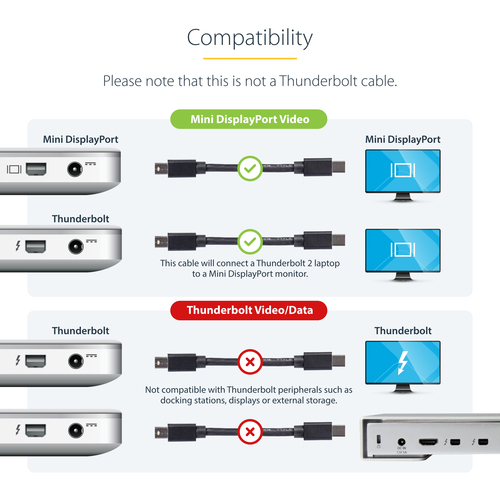

Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- DisplayPort version
- 1.2
- Maximum resolution
- 3840 x 2400 pixels
- Maximum refresh rate
- 60 Hz
- Cable length
- 1.8 m
- Connector 1
- mini DisplayPort
- Connector 2
- mini DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Product colour
- Black
- Cable rating
- CMG (CM)
- Cable shielding
- Aluminum mylar foil
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 32
- Bandwidth
- 21600 MB/s
- Multi-Stream Transport (MST)
- Yes
- Number of conductors
- 19
Operational conditions
- Operating temperature (T-T)
- -20 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 75%
Weight & dimensions
- Cable diameter
- 4.8 mm
- Weight
- 62 g
Packaging data
- Package width
- 220 mm
- Package depth
- 200 mm
- Package height
- 11 mm
- Package weight
- 71 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 328 mm
- Master (outer) case length
- 492 mm
- Master (outer) case height
- 222 mm
- Products per master (outer) case
- 60 pc(s)
Downloads
