Home/Catalogue/StarTech.com/DISPLPORT6L
Drag to turn · 13 views

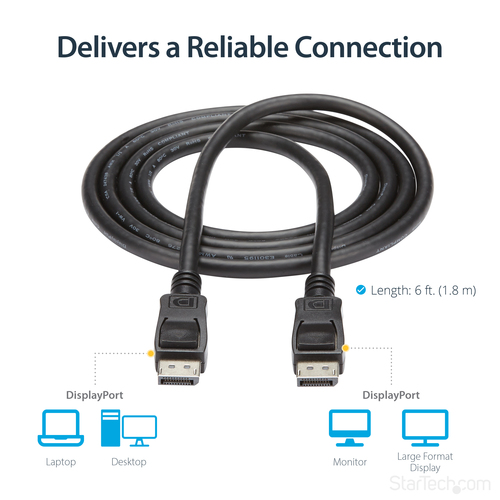

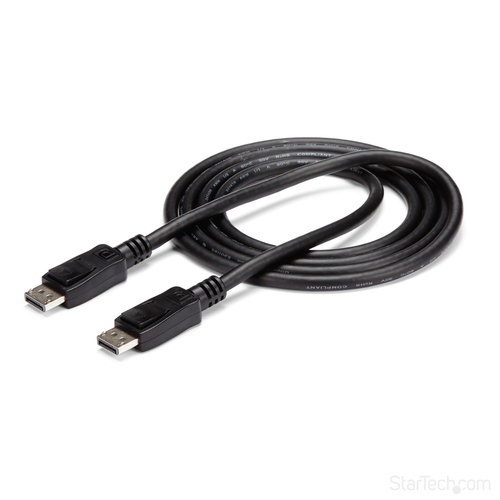

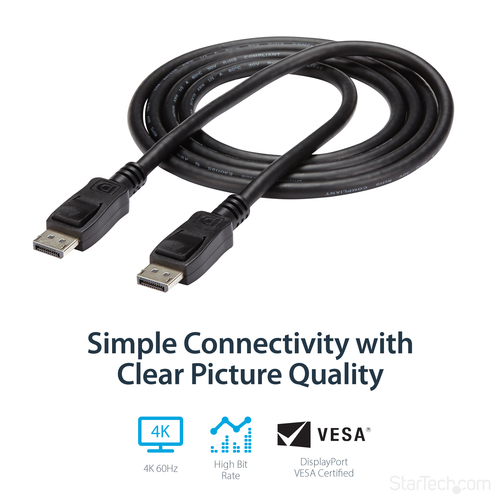

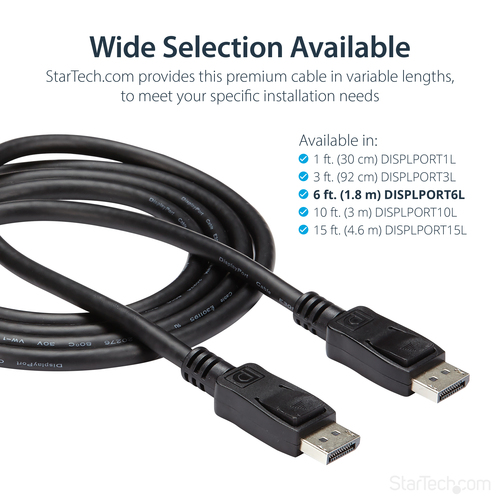

6ft (1.8m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP
- 6ft/1.8m VESA Certified DisplayPort v1.2 cable supports 4Kx2K(3840x2400 60Hz)
- 21.6 Gbps bandwidth/HBR2/8Ch Audio/MST/GTC/3D Stereo(2560x1600 120Hz)
- Durable 28AWG cable w/flexible PVC strain relief prevents damage due to bends/rough use

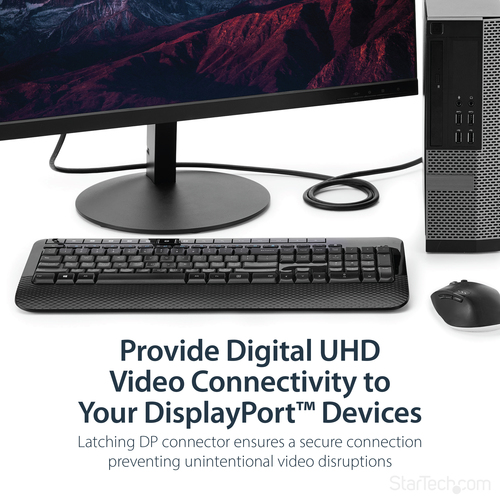

- Latching DP connectors prevent accidental disconnection
- For home/office/boardroom/classroom use w/ laptop/workstation and UHD monitor/projector/large display
- Samsung/Sony/Dell
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices
This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.
The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.
The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- DisplayPort version
- 1.2
- Maximum resolution
- 3840 x 2400 pixels
- Supported graphics resolutions
- 2560 x 1600 (WQXGA), 3840 x 2400
- Maximum refresh rate
- 120 Hz
- HDCP
- Yes
- DisplayPort Content Protection (DPCP)
- Yes
- Cable length
- 1.8 m
- Connector 1
- DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Latching connectors
- Yes
- Product colour
- Black
- Cable rating
- CMG (CM)
- Magnetically shielded
- Yes
- Cable shielding
- Aluminum mylar foil
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 28
- Bandwidth
- 21600 MB/s
- Plug and Play
- Yes
- Multi-Stream Transport (MST)
- Yes
- Number of conductors
- 19
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Cable diameter
- 6.5 mm
- Weight
- 300 g
Packaging data
- Package width
- 198 mm
- Package depth
- 148 mm
- Package height
- 29 mm
- Package weight
- 132 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 521 mm
- Master (outer) case length
- 338 mm
- Master (outer) case height
- 223 mm
- Products per master (outer) case
- 50 pc(s)
Downloads
