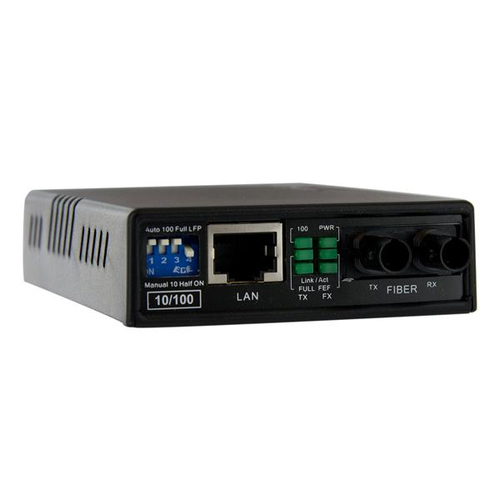

Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Specifications
Network
- Maximum data transfer rate
- 100 Mbit/s
- Converter input interface
- 10Base-T, 100BASE-FX, 100Base-TX
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Ethernet LAN data rates
- 10,100 Mbit/s
- Data transfer rate
- 100 Mbit/s
- Duplex system
- Full, Half
Performance
- Maximum transfer distance
- 2000 m
- Wavelength
- 1310 nm
- Wavelength-division multiplexing (WDM)
- No
- Sensitivity
- -31 dBmW
- Link budget
- 11 dB
- Mean time between failures (MTBF)
- 65000 h
Features
- Internal
- No
- LED indicators
- Yes
- Housing material
- Plastic
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber optic connector
- ST
Power
- Input voltage
- 100 - 240 V
- Output voltage
- 12 V
- Output current
- 0.2 A
- Power consumption (typical)
- 2.4 W
- Power over Ethernet (PoE)
- No
- Power plug type
- Type M
Weight & dimensions
- Width
- 75 mm
- Depth
- 95 mm
- Height
- 20 mm
- Weight
- 82 g
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%

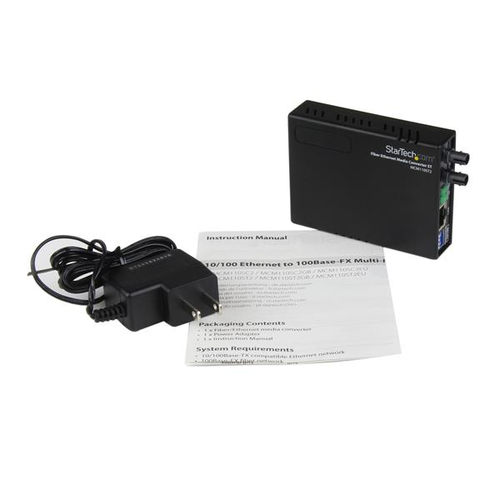

Packaging content
- AC adapter included
- Yes
- Manual
- Yes
Packaging data
- Package width
- 145 mm
- Package depth
- 175 mm
- Package height
- 61 mm
- Package weight
- 273 g
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, TAA, REACH
