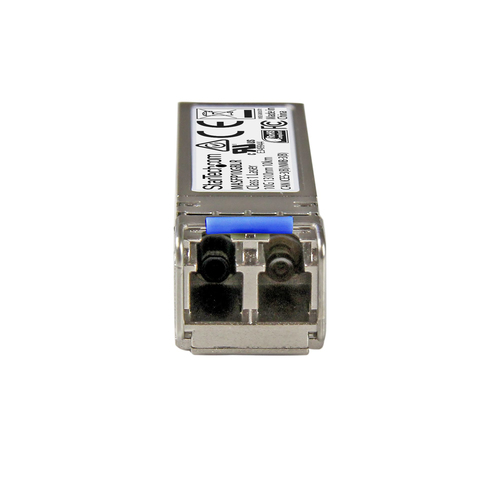

Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic
- Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ 10GBASE-LR (10 Gbps) Gigabit Ethernet
- 1310nm | Single Mode (SMF)
- Up to 10km (6.2mi)
- LC Connector DDM
- For Cisco Meraki switches like: MS225 MX400 MS250 MS350 MS425 MX600 MX450 MS450
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 10000 Mbit/s
- Interface type
- SFP+
- Single-mode fiber (SMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- LR
- Maximum transfer distance
- 10000 m
- Wavelength
- 1310 nm
- Networking standards
- IEEE 802.3ae
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Housing material
- Aluminium
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 2104865 h
Power
- Power consumption (typical)
- 1.2 W
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.9 mm
- Depth
- 58.4 mm
- Height
- 12.6 mm
- Weight
- 22 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 92 mm
- Package depth
- 114 mm
- Package height
- 33 mm
- Package weight
- 53 g
Logistics data
- Master (outer) case width
- 250 mm
- Master (outer) case length
- 300 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 200 mm
- Products per master (outer) case
- 3 pc(s)
- Country of origin
- China
Downloads
More in Expansion Modules

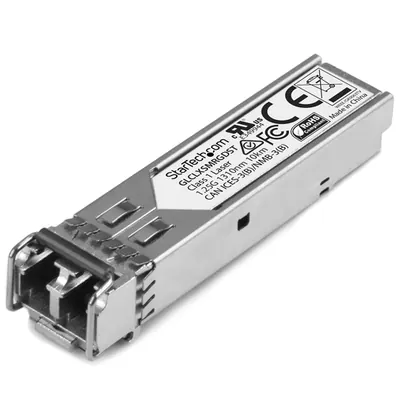

StarTech.comCisco GLC-LX-SM-RGD Compatible SFP - Gigabit Fiber 1000Base-LX SFP TraGLCLXSMRGDST

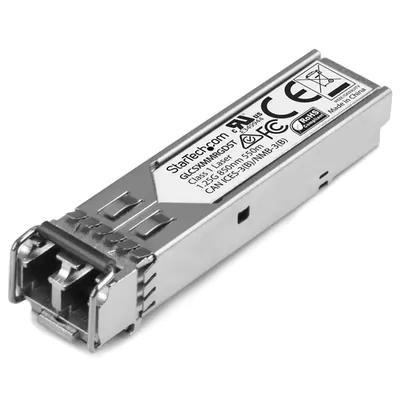

StarTech.comCisco GLC-SX-MM-RGD Compatible SFP - Gb Fiber SFP Transceiver Module -GLCSXMMRGDST

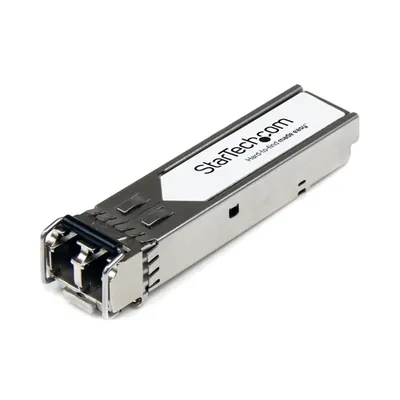

StarTech.com100% compatibility with HP J9150D guaranteed - Lifetime Warranty on alJ9150D-ST

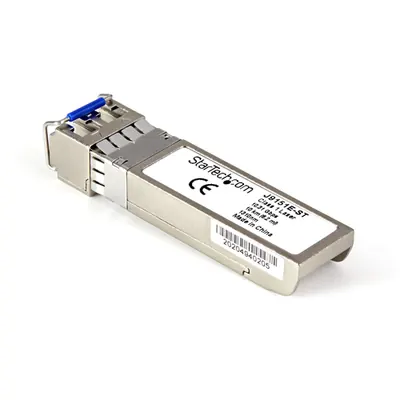

StarTech.com100% compatibility with HP J9151E guaranteed - Lifetime Warranty on alJ9151E-ST

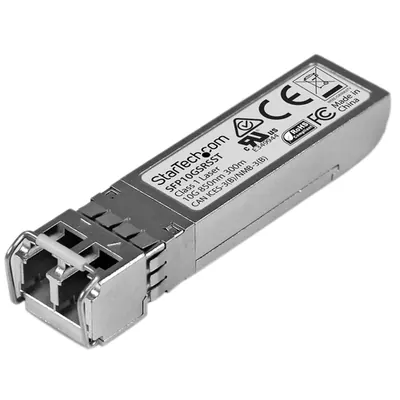

StarTech.comCisco SFP-10G-SR-S Compatible SFP+ - 10 Gigabit Fiber SFP+ TransceiverSFP10GSRSST

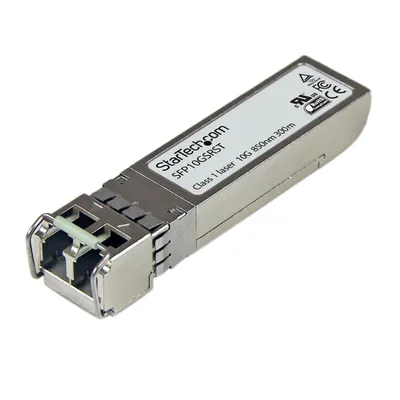

StarTech.comCisco Compatible 10GBase-SR SFP+ Fiber Transceiver Module 850nm MM LC SFP10GSRST

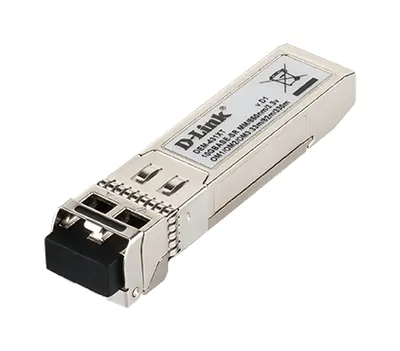

D-Link10GBASE-SR Multimode SFP+ Transceiver (up to 300m)DEM-431XT

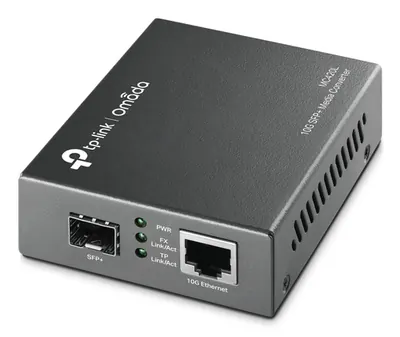

TP-LinkOmada 10G MultiGigabit RJ45 to 10G SFP+ Slot Supporting MiniGBIC ModulMC420L
