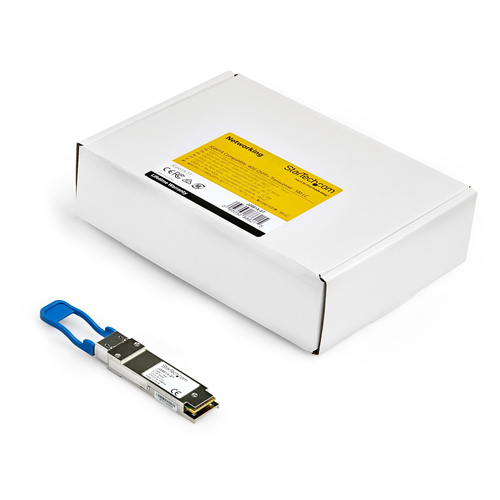

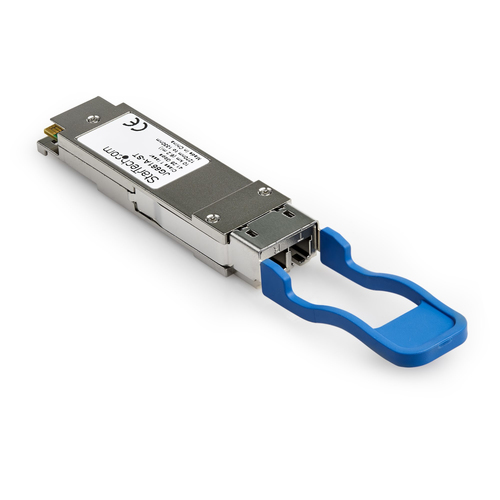

HPE JG661A Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber Optic Transceiver - 40GE
- HPE JG661A Compatible QSFP+40GBASE-LR4 (40Gbps) Gigabit Ethernet
- 1270nm to 1330nm Single Mode (SMF)
- Up to 10km (6.2mi)
- LC Connector DDM
- For HPE switches like: 5900AF 12902
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JG661A-ST is a HPE JG709A compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 244,610,583 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 40000 Mbit/s
- Interface type
- QSFP+
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- MPO
- SFP transceiver standard
- LR4
- Maximum transfer distance
- 300 m
- Wavelength
- 850 nm
- Fiber ethernet cabling technology
- 40GBASE
- Digital Diagnostics Monitoring (DDM)
- Yes
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 244610583 h
- Brand compatibility
- HP
- Compatible products
- JG661A
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- REACH, CE, FCC
Weight & dimensions
- Width
- 122 mm
- Depth
- 18.3 mm
- Height
- 8.5 mm
- Weight
- 49 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 120 mm
- Package depth
- 205 mm
- Package height
- 35 mm
- Package weight
- 60 g
Logistics data
- Master (outer) case width
- 120 mm
- Master (outer) case length
- 205 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 35 mm
- Products per master (outer) case
- 1 pc(s)
