PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to

Part # IMC1GSFP60WUPC 065030889636Warranty: 2 Years0.85 lb

Fiber to Ethernet Media Converter extends networks and converts SM/MM fiber to RJ-45 Copper
Gigabit Ethernet media converter is PSE source for up to 60W power to PD devices
1 Gbps| 1 x SFP (MSA Compliant) | 1x RJ45 | 48V-56VDC | IEEE 802.3af (PoE)/IEEE 802.3at (PoE+) (60W) | 10/100/1000Mbps Auto-Negotiation | LFP | 16K Jumbo Frames | IP-30 Aluminum | w/DIN/Wall Mount Hardware
Industrial -40C to 75C temp
Power w/48-56VDC terminal block or standard 48-56VDC Type N wall adapter

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.

Designed for Harsh Environments

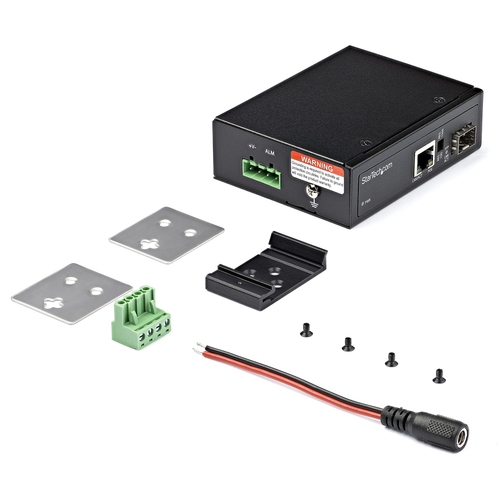

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

Up to 60 Watts of Power for Connected Devices

60 watts of available support a wide range of PD devices such as:

• Pan-and-Tilt Cameras

• Lighting

• Cameras

• Sensors

• WiFi Access Points

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Dual Power Inputs

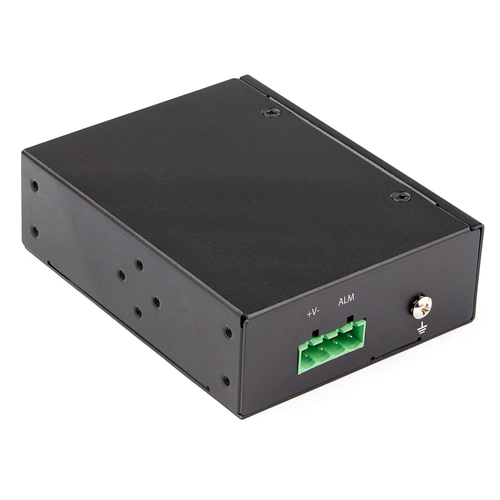

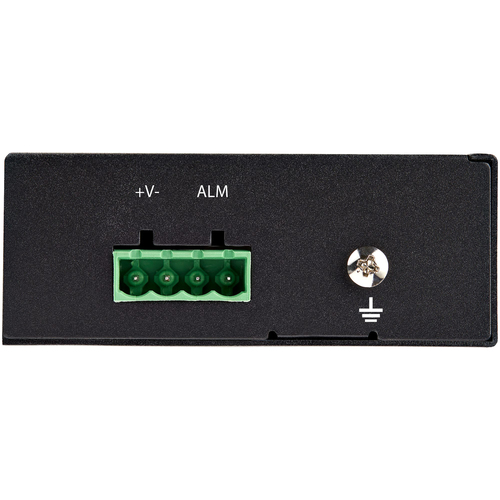

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
