HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP
- Control a computer's keyboard/mouse/4K 60Hz HDMI monitor from a remote location over an existing IP network when paired with a compatible transmitter
- No config/drivers/software required
- Works with any OS (Windows/macOS/Linux)
- Compatible with all hardware platforms (Intel/AMD/ARM/Apple Silicon)
- Create a one-to-many setup making it easy to scale with your business needs for a future-proof solution
- Serial and 3.5mm audio passthrough
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

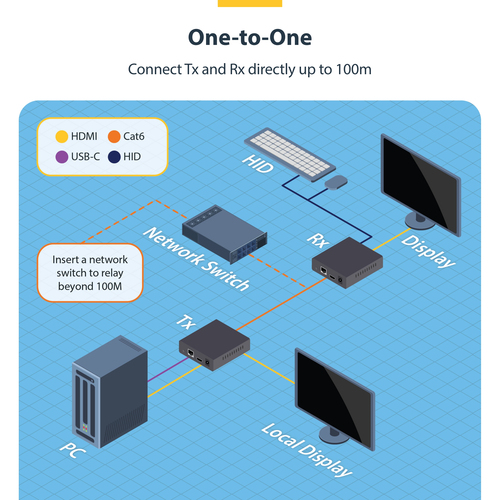

Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Receiver enables remote computer access over an existing TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof

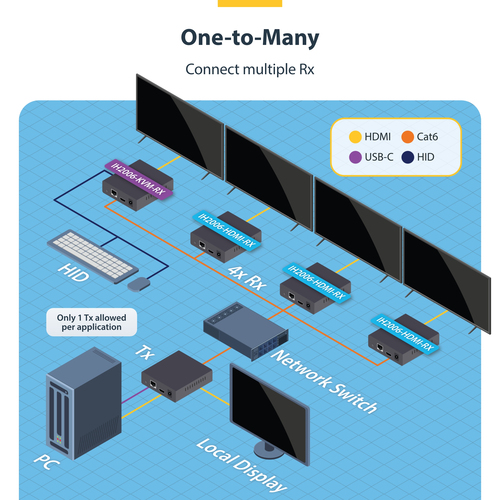

Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.
Professional-Grade Design

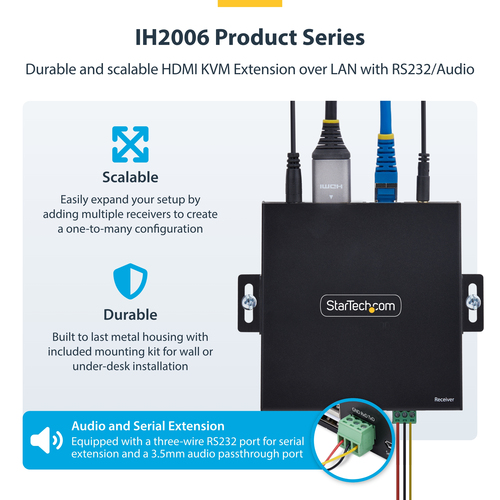

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
Specifications
Features
- Type
- Receiver
- Connectivity technology
- Wired
- Rack mounting
- No
- Maximum digital resolution
- 3840 x 2160 pixels
- Maximum refresh rate
- 60 Hz
- On Screen Display (OSD)
- No
- Product colour
- Black
- Material
- Metal
- LED indicators
- Yes
Receiver
- Receiver local video port type
- HDMI
- Receiver local keyboard/mouse port type
- USB
- RJ-45 ports quantity (receiver)
- 1
- Receiver Micro-USB ports quantity
- 1
- Receiver USB Type-A ports quantity
- 2
Ports & interfaces
- HDMI version
- 2.0
- RS-232 ports
- 1
- PC Audio out
- Yes
Power
- Power plug type
- Type M
- AC input voltage
- 100 - 240 V
- Input current
- 0.3 A
- AC adapter output voltage
- 5 V
- AC adapter output current
- 2 A
- Power consumption (receiver) (max)
- 10 W
- DC-in jack
- Yes
Packaging data
- Package width
- 199 mm
- Package depth
- 149 mm
- Package height
- 80 mm
- Package weight
- 500 g

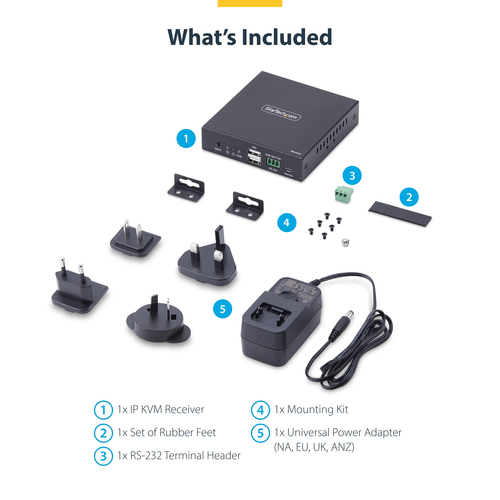

Packaging content
- AC adapter included
- Yes
- Cables included
- No
- Mounting bracket(s) included
- Yes
- Included power plug types
- ANZ, EU, NA, UK
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- -30 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
Other features
- Compliance certificates
- Federal Communications Commission (FCC), RoHS
Logistics data
- Master (outer) case width
- 425 mm
- Master (outer) case length
- 315 mm
- Master (outer) case height
- 420 mm
- Products per master (outer) case
- 20 pc(s)
