Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE
- Industrial 8 + 2 port Gigabit PoE+ switch|8x RJ45|2x Open SFP slots (MSA Compliant)|10/100/1000 Mbps Network auto|Managed
- Up to 30W per Power over Ethernet port (PSE) to IEEE 802.3af and IEEE 802.3at over Cat5e or better
- Total pwr 120W
- Layer/L2 mgmt
- web-based GUI/Telnet/SSH
- Managed to config Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management
Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.
Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).

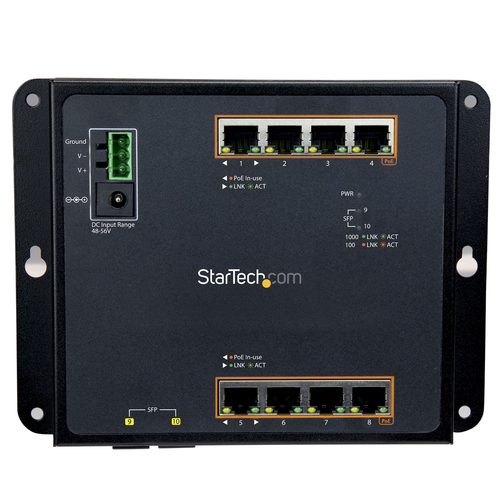

Wall-mountable with front access
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
Efficient Layer 2 management
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.
Rugged IP30 industrial design
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.
Reliable connection for seamless network performance
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.
The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Tagged VLAN
Data transmission
- Store-and-forward
- Yes
Security
- Access Control List (ACL)
- Yes
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Activity, Link
- International Protection (IP) code
- IP30
- Wall mountable
- Yes
Performance
- Maximum cable length
- 100 m
- Buffer size
- 512 KB
- Maximum data transfer rate
- 2000 Mbit/s
- Mean time between failures (MTBF)
- 100000 h
Power
- Input current
- 1 A
- Input voltage
- 12 - 48 V
- Power plug type
- Type M
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 200 W
Other features
- Terminal block port
- Yes
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 90 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 178 mm
- Depth
- 134 mm
- Height
- 25 mm
- Weight
- 618 g
Packaging content

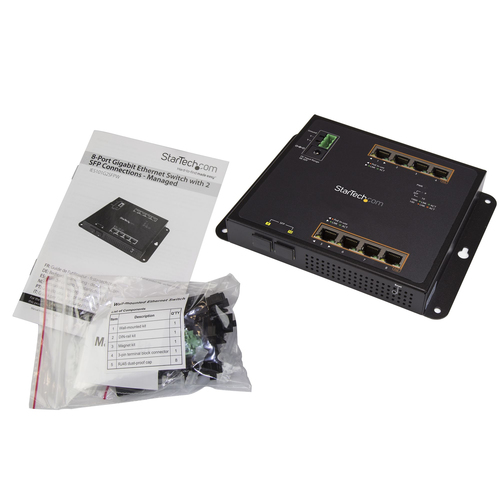

- Quick start guide
- Yes
Packaging data
- Terminal block included
- Yes
- Package width
- 172 mm
- Package depth
- 300 mm
- Package height
- 91 mm
- Package weight
- 900 g
Certificates
- Certification
- CE, FCC, RoHS
Logistics data
- Master (outer) case width
- 325 mm
- Master (outer) case length
- 370 mm
- Master (outer) case height
- 470 mm
- Harmonized System (HS) code
- 85176990
- Products per master (outer) case
- 10 pc(s)
