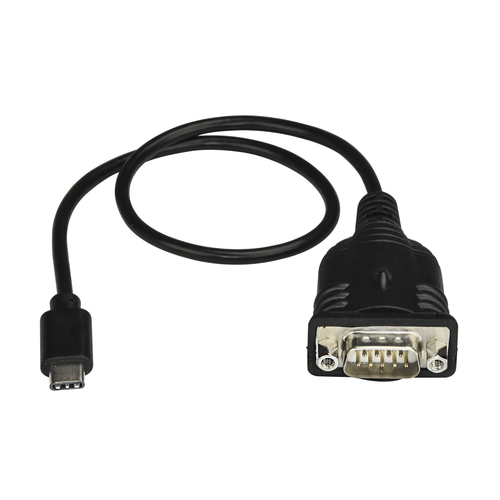

USB C to Serial Adapter Cable 16" (40cm) - USB Type C to RS232 (DB9) Converter Cable - USB-C Serial
- Portable USB Type-C to male Serial RS232 (DB9) adapter converter w/16 in [40 cm] cable length
- Control RS-232 field equipment over USB-C laptop such as PLCs/scanners/sensors/oscilloscopes/medical/receipt printers
- TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes of None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control options Odd/Even/Mark/Space/None
- Driverless setup | Supports Win 7 and up/macOS 10.11 and up/Linux 2.6 and up
- 2-year warr
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect an RS232 (DB9) peripheral to your USB-C device
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Ready for mobile or desktop applications
The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.
The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Features
- Product colour
- Black
- Cable length
- 0.4 m
- Connector 1
- USB C
- Connector 2
- DB-9
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Chipset
- Prolific - PL2303RA
- Mac operating systems supported
- Mac OS X 13.0 Ventura
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 199 mm
- Package depth
- 137 mm
- Package height
- 21 mm
- Package weight
- 52 g
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -20 - 80 °C
- Operating relative humidity (H-H)
- 0 - 65%
Weight & dimensions
- Weight
- 36 g
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 370 mm
- Master (outer) case length
- 410 mm
- Master (outer) case height
- 280 mm
- Products per master (outer) case
- 200 pc(s)
