StarTech.com HB31C2A1CGB Drag to turn · 6 views
StarTech.comLaptop Docks & Port Replicators

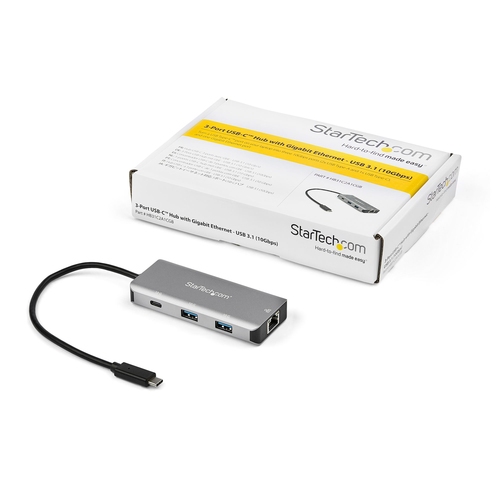

3 Port USB C Hub with Gigabit Ethernet RJ45 GbE Port - 2x USB-A, 1x USB-C - SuperSpeed 10Gbps USB

Part # HB31C2A1CGBUPC 065030877893Warranty: 2 Years1 lb

  • Portable 3 Port USB-C hub with USB 3.2 Gen 2 SuperSpeed 10Gbps | USB Type-C host laptop to 1x USB-C and 2x USB-A adapter hub
  • Gigabit Ethernet RJ45 port with Jumbo Frames/WoL and 10/100/1000 Mbps
  • USB Bus Powered hub with speeds up to 10Gbps and power up to 15W (3A) shared with all downstream devices | Also supports USB 3.2 Gen 1/2.0 devices like keyboards/mice/web cams/etc
  • Compatible w/ Thunderbolt 3 host ports
  • Compact aluminum housing | 9.8" (25cm) attached cable | OS independent
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

USB Type-C™ Hub | USB 3.2 Gen 2 (10Gbps) | Gigabit Ethernet | Bus-Powered | Mac & Windows®

Expand the connectivity of your USB-C laptop with this new generation USB-C Gen 2 hub offering 10Gbps supporting greater bandwidth to connected devices and faster data transfer speeds. This bus-powered 3-Port USB-C hub plugs into the USB Type-C™ or Thunderbolt™ 3 port on your device, adding one LAN port, one USB-C port, and two USB-A ports, so you can quickly connect more USB devices.

01

Gigabit Network Access

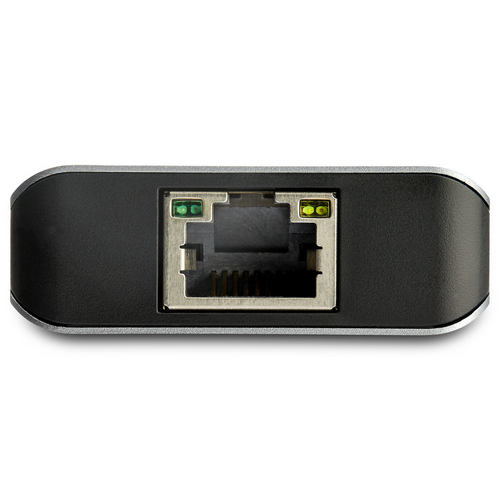

For faster and more consistent network connections, the USB 3.2 Gen 2 Hub’s integrated Gigabit Ethernet port provides wired network access that is fully compatible with IEEE 802.3/u/ab standards. The GbE port also supports Wake-on-LAN (WOL), so you can remotely wake your computer over your network.

02

Convenient Portability and Easy Setup

This compact, lightweight USB-Type-C hub is a convenient and portable addition to your laptop accessories. The USB-C cable is built-in, and hub is bus-powered, so it draws its power directly from your computer’s USB-C port, with no external power required. That means fewer cables to carry with you when you travel. The hub can draw up to 15 Watts of power from the connected host and operating multiple bus powered devices at one time with the total available power dependent on the connected host.

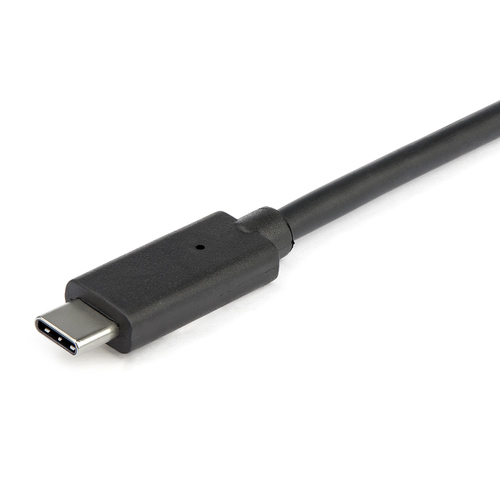

The extended length attached cable of 9.8” (25 cm) provides more flexibility for longer reach connection requirements and plug and play installation.

03

Connect Both USB-C & USB-A Peripherals

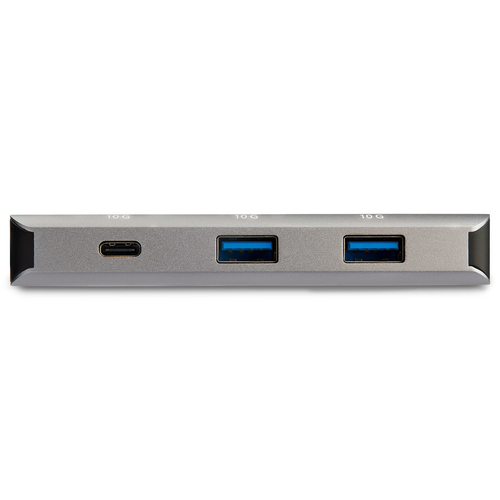

With ports for both USB-C and USB-A peripherals, this hub is backwards compatible supporting both legacy and new USB devices. You can connect flash drives, video capture devices and external hard drives, with fast data transfer speeds of up to 10Gbps. This USB Type-C hub enhances your productivity, giving you the connections, you need while you work.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

HB31C2A1CGB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DC-in jack
No

Network

Ethernet LAN (RJ-45) ports
1
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes

Performance

Card reader integrated
No
Product colour
Black, Grey
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Plug and Play
Yes
UASP support
Yes
Housing material
Aluminium, Plastic

Power

Power supply type
USB
Wireless charging
No

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Linux operating systems supported
Ubuntu 14.04, Ubuntu 16.04
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64, Windows Server 2019
Other operating systems supported
Android, iOS

Sustainability

Sustainability compliance
Yes
Sustainability certificates
CE, RoHS

Weight & dimensions

Width
45 mm
Depth
102 mm
Height
14 mm
Weight
69 g

Packaging data

Quantity per pack
1 pc(s)
Package width
146 mm
Package depth
211 mm
Package height
41 mm
Package weight
200 g

Technical details

Compliance certificates
CE, RoHS

Logistics data

Products per master (outer) case
40 pc(s)
Master (outer) case width
458 mm
Master (outer) case length
323 mm
Master (outer) case height
446 mm
Harmonized System (HS) code
84719000

Other features

Chipset
Realtek - RTS5423, Realtek - RTL8153
