StarTech.com HB30C3A1GEA2 Drag to turn · 10 views
StarTech.comLaptop Docks & Port Replicators

3-Port USB-C Hub with Ethernet - 3x USB-A - Gigabit Ethernet - USB 3.0 5Gbps - Bus-Powered

Part # HB30C3A1GEA2UPC 065030897709Warranty: 2 Years0.2 lb

  • USB-C laptop expansion hub with 3x USB-A and Gigabit Ethernet
  • IEEE 802.3u/ab standards | Wake-on-LAN | Jumbo Frames | V-LAN Tagging | USB 3.2 Gen 1 (5Gbps) | USB C to USB A Hub
  • Each USB port can provide up to 4.5W (5V/0.9A) dependent on provided bus power from host | Overcurrent protection (OCP) on downstream ports | Wake-on-USB
  • Windows/macOS/Linux/iPadOS/ChromeOS
  • Bus-powered portable USB-C hub| Connectivity Tools App
  • Upgraded Version of HB30C3A1GEA with 1ft cable for extended reach
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

10/100/1000Mbps Ethernet | USB Type-C to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable

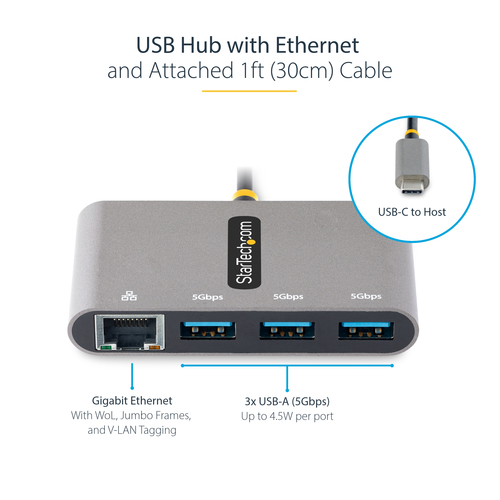

This USB-C Hub with Gigabit Ethernet adds three USB-A 3.2 Gen 1 (5Gbps) ports and one Gigabit Ethernet port to a USB-C enabled computer. The bus-powered USB Hub connects to a USB-C port on a laptop computer, using the built-in 1 ft. (30 cm) host cable. This USB hub is compact in size, facilitating portability when travelling.

01

Gigabit Ethernet

The USB hub features a Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.

02

Connect up to Three USB-A Devices

The 3-port USB 3.2 Gen 1 (5Gbps) Hub adds three USB-A ports by connecting to a single USB-C port. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., external storage devices, thumb drives, HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).

The USB Hub is bus-powered. It draws up to 15W of power from the USB-C host computer. Each downstream USB-A port is capable of providing up to 4.5W (5V/0.9A) of power to the connected peripherals. For added protection to connected USB devices, the USB ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

03

Plug and Play

This device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected and configured upon connection to a host computer. This ensures automatic installation and setting configuration with any USB-C laptop, including Thunderbolt 3, Thunderbolt 4 and USB4 computers such as Apple MacBook (Intel/M1/M2), Lenovo X1 Carbon and Dell XPS. The built-in extra long 1 ft. (30 cm) USB-C host cable ensures easy setup and reduces connector strain on 2-in-1 devices such as the Surface Pro 7, iPad Pro, HP Elite X2 and laptops on riser stands.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

• MAC Address Pass-Through Utility : Improve network security.

• USB Event Monitoring Utility : Track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Microphone in
No
DC-in jack
No

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo frames support
Yes
Jumbo frames
9000
Flow control support
Yes
Auto MDI/MDI-X
Yes
Full duplex
Yes
VLAN tagging
Yes

Performance

Card reader integrated
No
Product colour
Grey
Hub interfaces
RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
LED indicators
Activity, Link
UASP support
Yes
Housing material
Plastic

Power

Power source type
USB
Power supply type
USB
Wireless charging
No

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported
Yes
Other operating systems supported
Android

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%

Sustainability

Sustainability compliance
Yes
Sustainability certificates
CE, RoHS

Weight & dimensions

Width
80 mm
Depth
40 mm
Height
14 mm
Weight
37 g

Packaging data

Package width
143 mm
Package depth
173 mm
Package height
34 mm
Package weight
104 g

Technical details

Compliance certificates
CE, RoHS

Logistics data

Products per master (outer) case
60 pc(s)
Master (outer) case width
542 mm
Master (outer) case length
343 mm
Master (outer) case height
317 mm

Other features

Cable length
0.3 m
Chipset
VIA/VLI - VL817, ASIX - AX88179A
