StarTech.comPower Cables

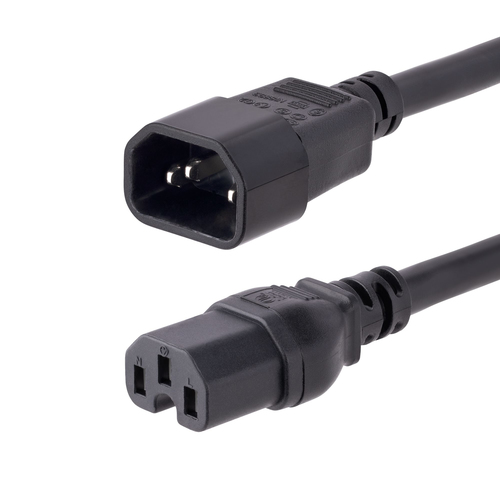

10ft (3m) Heavy Duty Extension Cord, C14 to C15 Extension Cord, 15A 125V, 14AWG, Heavy Gauge Power
- Heavy Duty Power Extension Cord 10ft (3m) | IEC 60320 C14 to IEC 60320 C15 connectors | For high-powered servers| Indoor use | 125V at 15A (Max)
- Made with UL-listed components (UL62/UL817) | Fully molded strain relief connectors | Fire Rating VW-1 | 3 Conductor extension cord
- AC power Cord | IEC 60320 C14 to IEC 60320 C15 | 14AWG | 125V 15A (Max) |Black | Jacket Rating: SJT | Jacket Material: PVC | Temperature Range: -4DEGto 140DEG F (-20 to 60DEG C) | Cable Outer Diameter: 0.34in (8.7mm)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect high-powered servers to a power distribution unit
The H1415-10F-POWER-CORD features a C15 connector rated for high-temperature equipment. The cable is 14 AWG which is suitable for high power connections.
A reliable solution for connecting to C14 Power Distribution Units (PDUs), located in switchgear rooms and data center environments, or large server applications requiring a high voltage/amperage, heavy gauge cable.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Features
- Product colour
- Black
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Cable length
- 3.05 m
- Connector 1
- C14 coupler
- Connector 2
- C15 coupler
- Connector 1 standard
- IEC 60320
- Connector 2 standard
- IEC 60320
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- Jacket material
- Polyvinyl chloride (PVC)
- Conductor material
- Copper
- AWG wire size
- 14
- Cable type
- SJT
- Number of conductors
- 3
Power
- Input voltage
- 125 V
- Input current
- 15 A
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- 0 - 30 °C
- Operating relative humidity (H-H)
- 0 - 55%
Certificates
- Compliance certificates
- RoHS
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Diameter
- 8.7 mm
- Weight
- 315 g
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 245 mm
- Package depth
- 183 mm
- Package height
- 54 mm
- Package weight
- 500 g
Logistics data
- Master (outer) case width
- 541 mm
- Master (outer) case length
- 335 mm
- Master (outer) case height
- 254 mm
- Products per master (outer) case
- 40 pc(s)
